Ship Construction Energy Breaker JGX-1278 Wire Rope Isolator

Ship Construction Energy Breaker JGX-1278 Wire Rope Isolator

Material: Stainless Steel or Aluminum
Certification: ISO9001:2015
Brand Name: Hoan
Place of Origin: Shaanxi, China
Product description: Ship Construction Energy Breaker JGX-1278 Wire Rope Isolator
INQUIRY EMAIL

Product Description:

Product Description

Wire rope isolators are comprised of stainless steel stranded cable threaded through aluminum retaining bars that are mounted for effective shock and vibration isolation.

With their corrosion resistant, all-metal construction, Xi’an Hoan’s wire rope isolators are environmentally stable, high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.

JGX-1278 Series is the new designed 8 loops 12.7mm diameter wire rope isolators with max static load from 122kg to 370kg, especially used in any instruments or systems for mechanical noise attenuation. With stainless steel or alloy material, this kind wire rope isolator has perfect performance of water-proof, anticorrosion as well as durability.

The wire rope shock isolators are now widely used in the field of military vehicles, armored cars, missile, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

Technical Parameter:

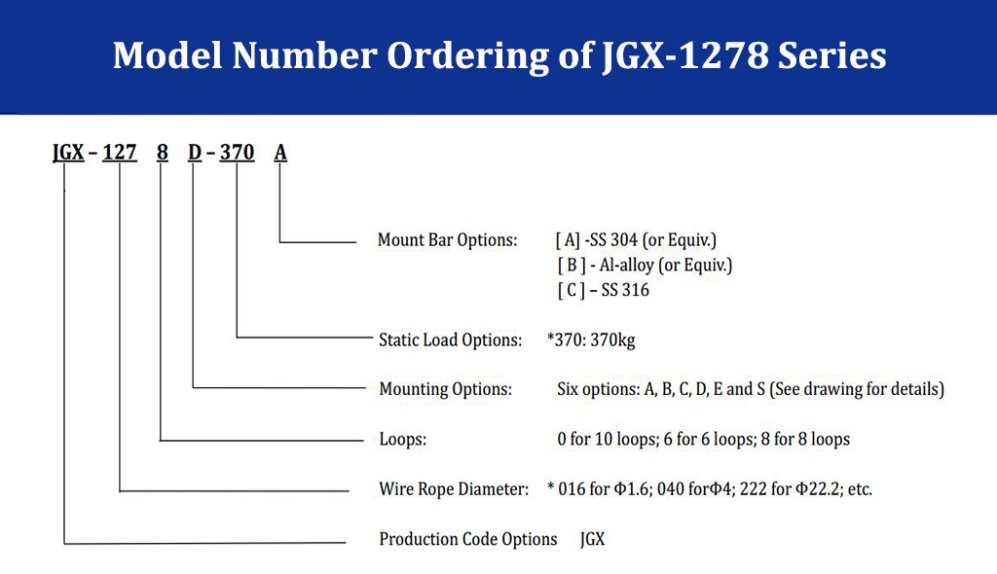

Model Number Code Ordering of JGX-1278 Series:

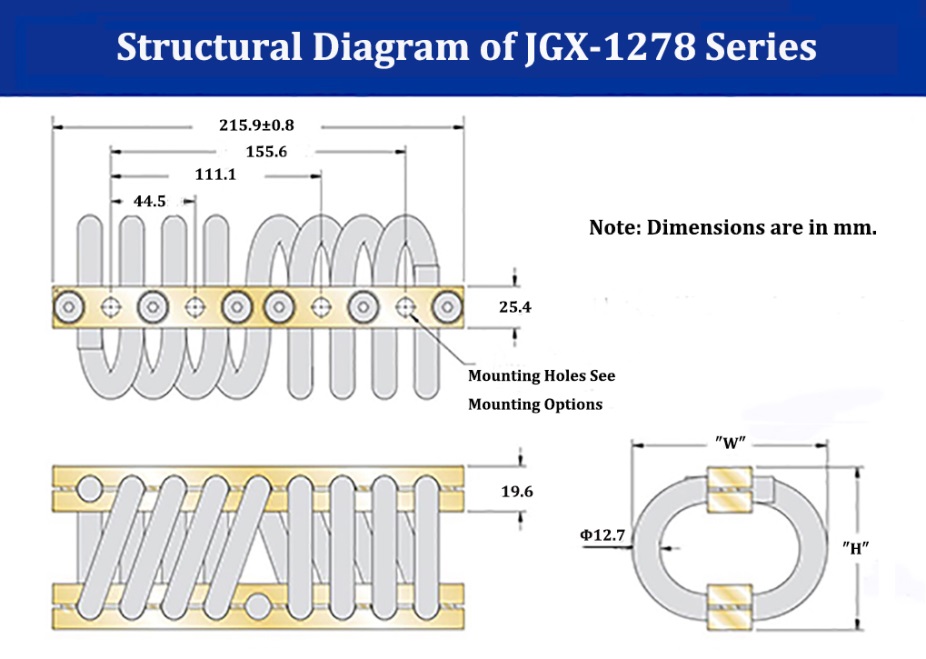

Structural Diagram of JGX-1278 Series:

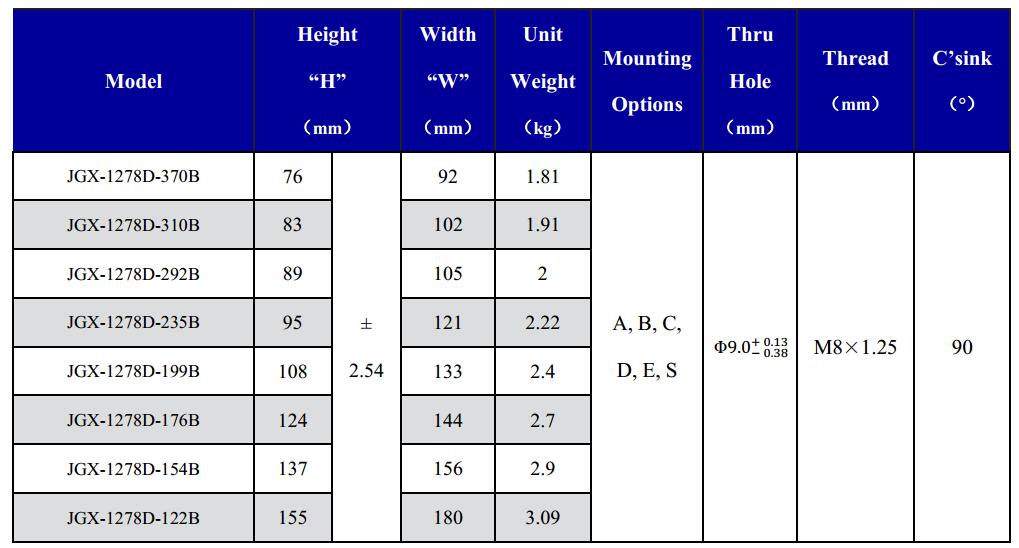

Dimension of JGX-1278 Series:

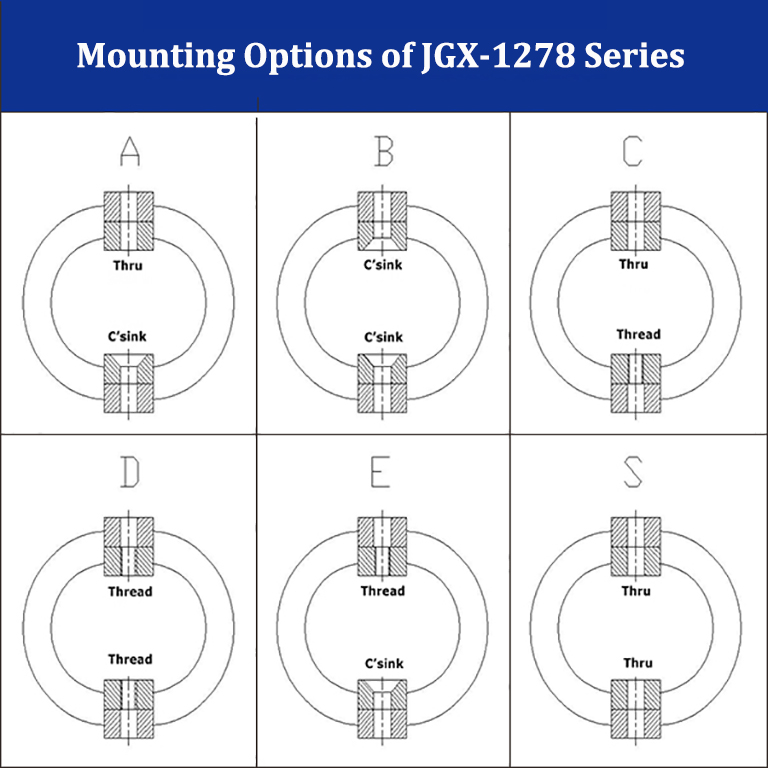

Mounting Options of JGX-1278 Series:

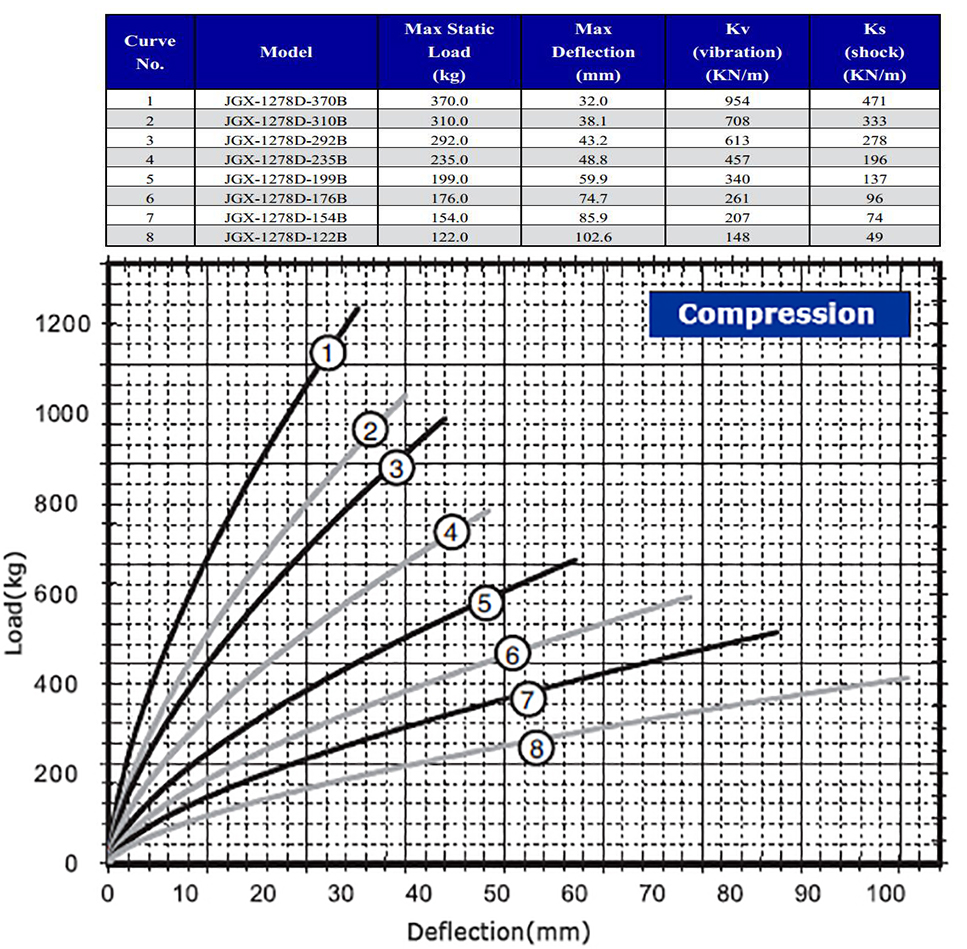

Compression of JGX-1278 Series:

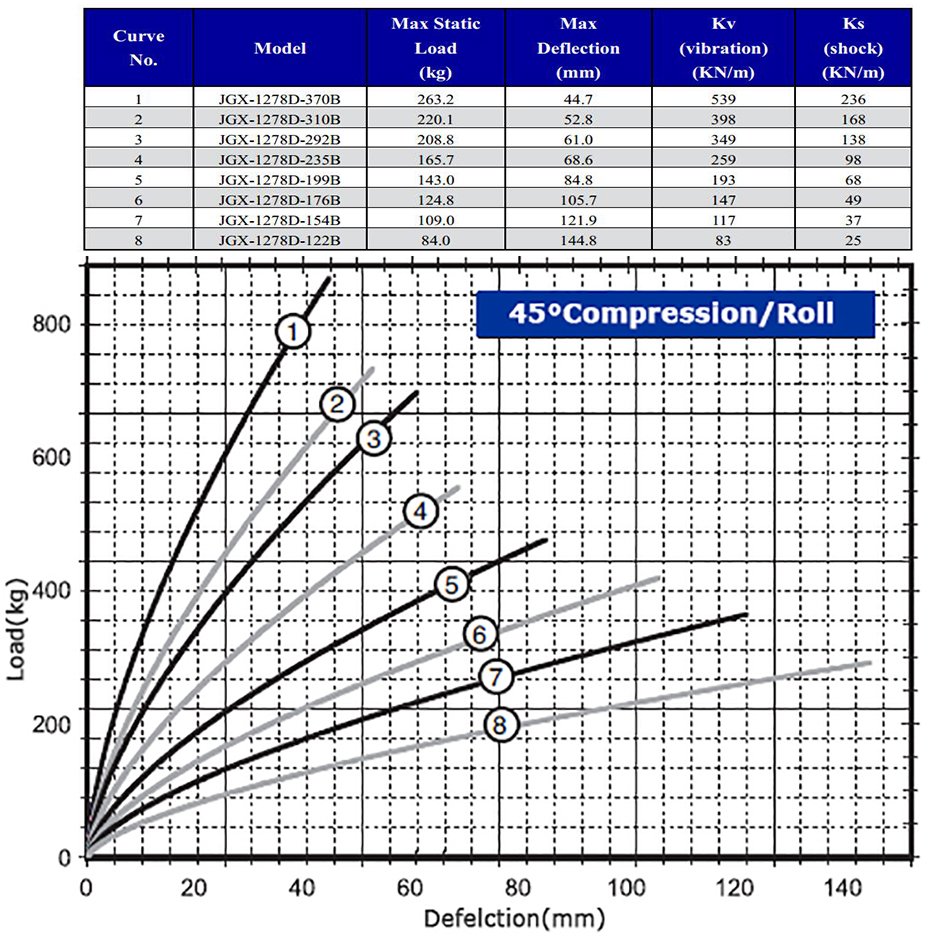

45° Compression of JGX-1278 Series:

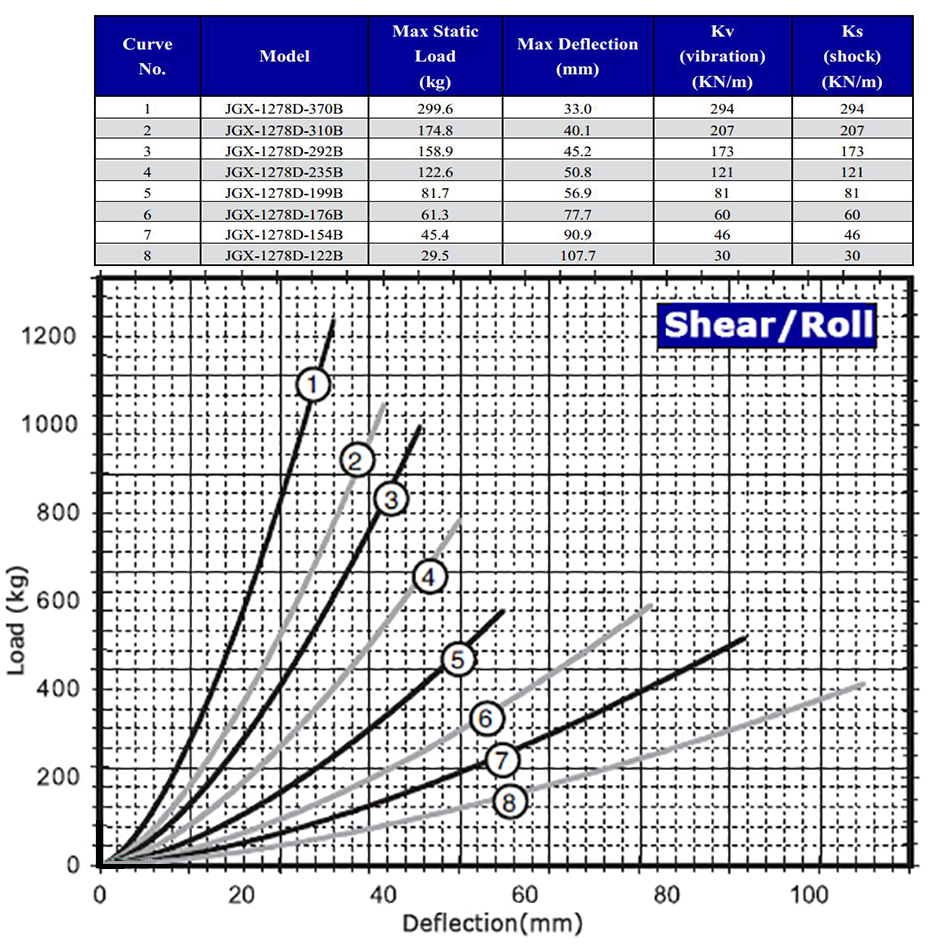

Shear/Roll of JGX-1278 Series:
