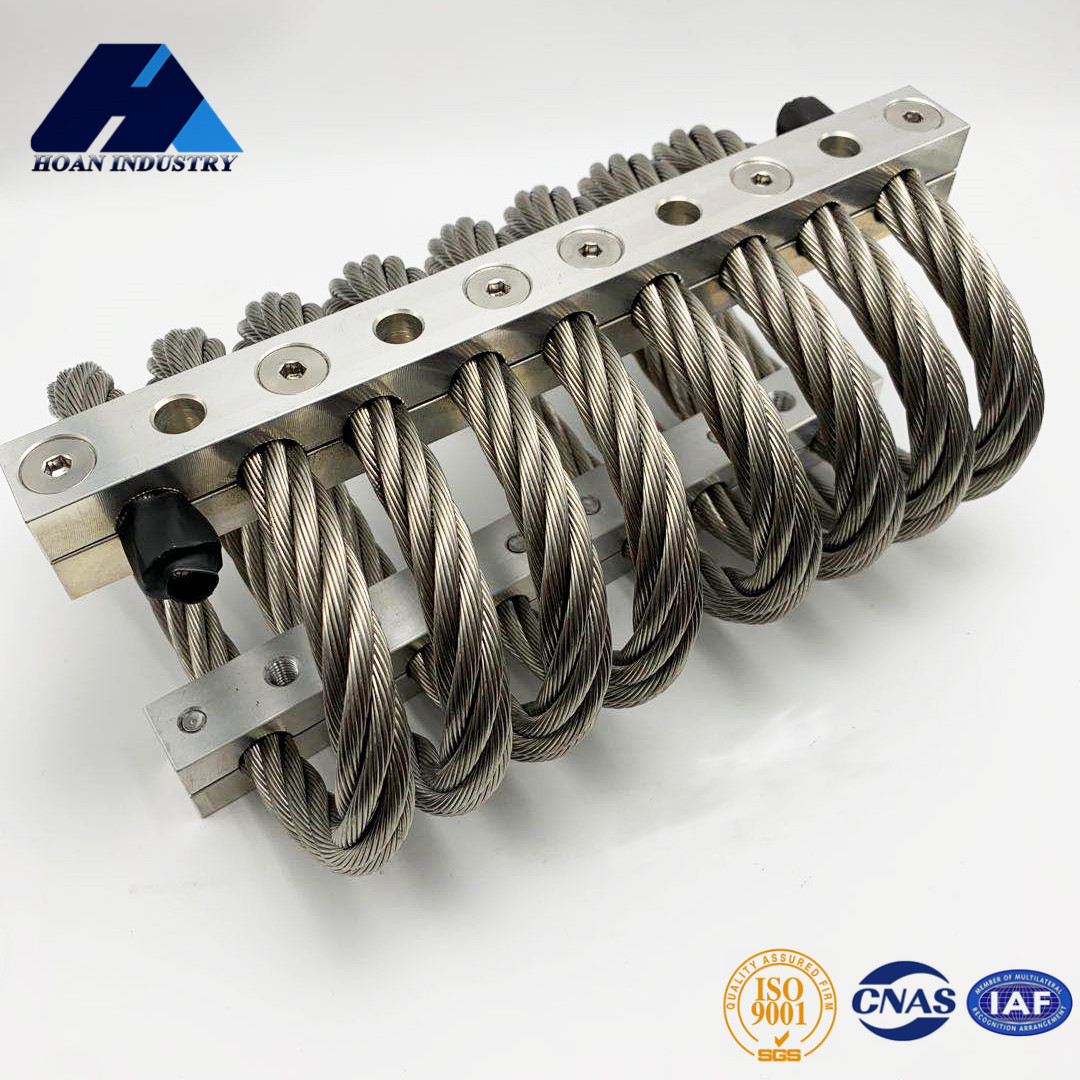

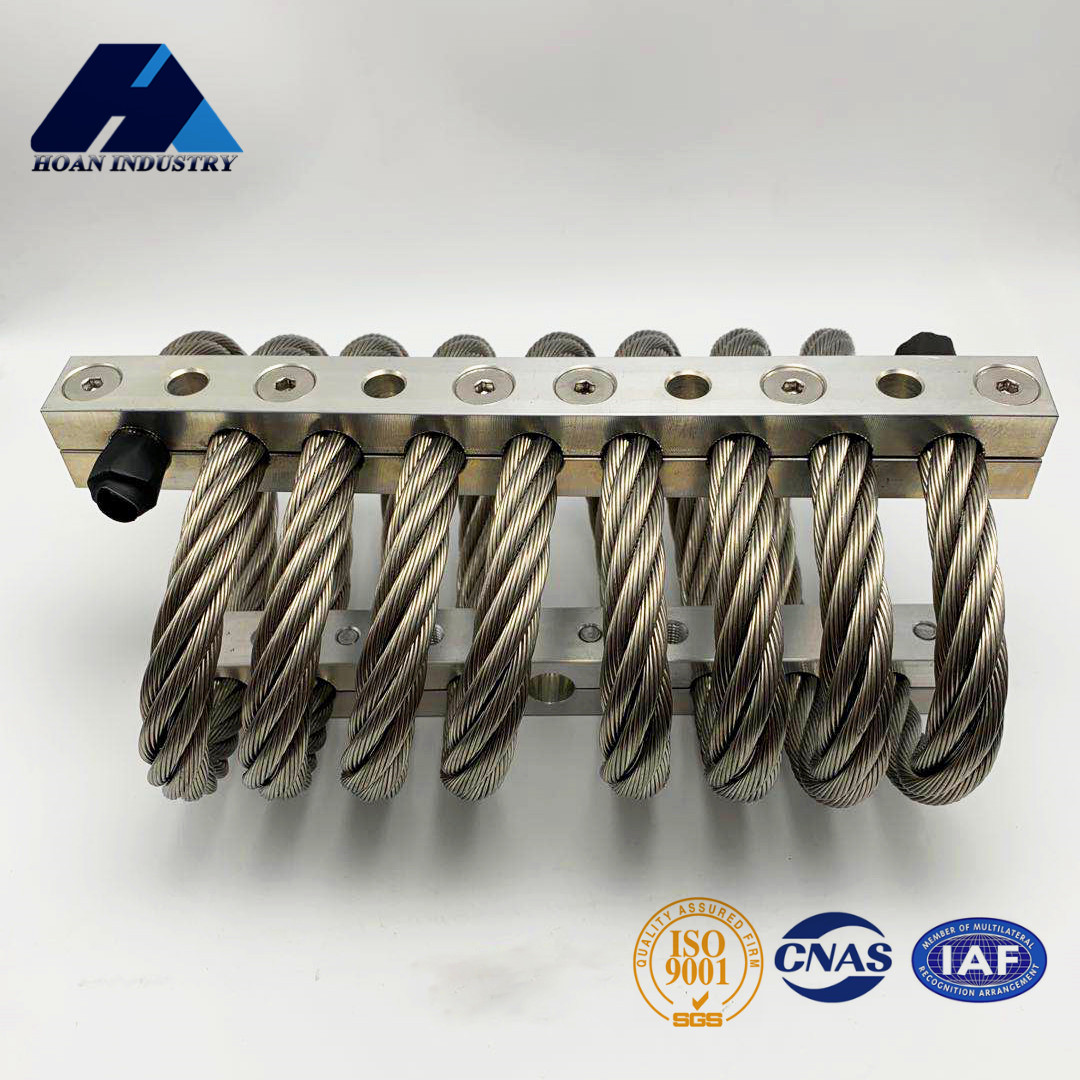

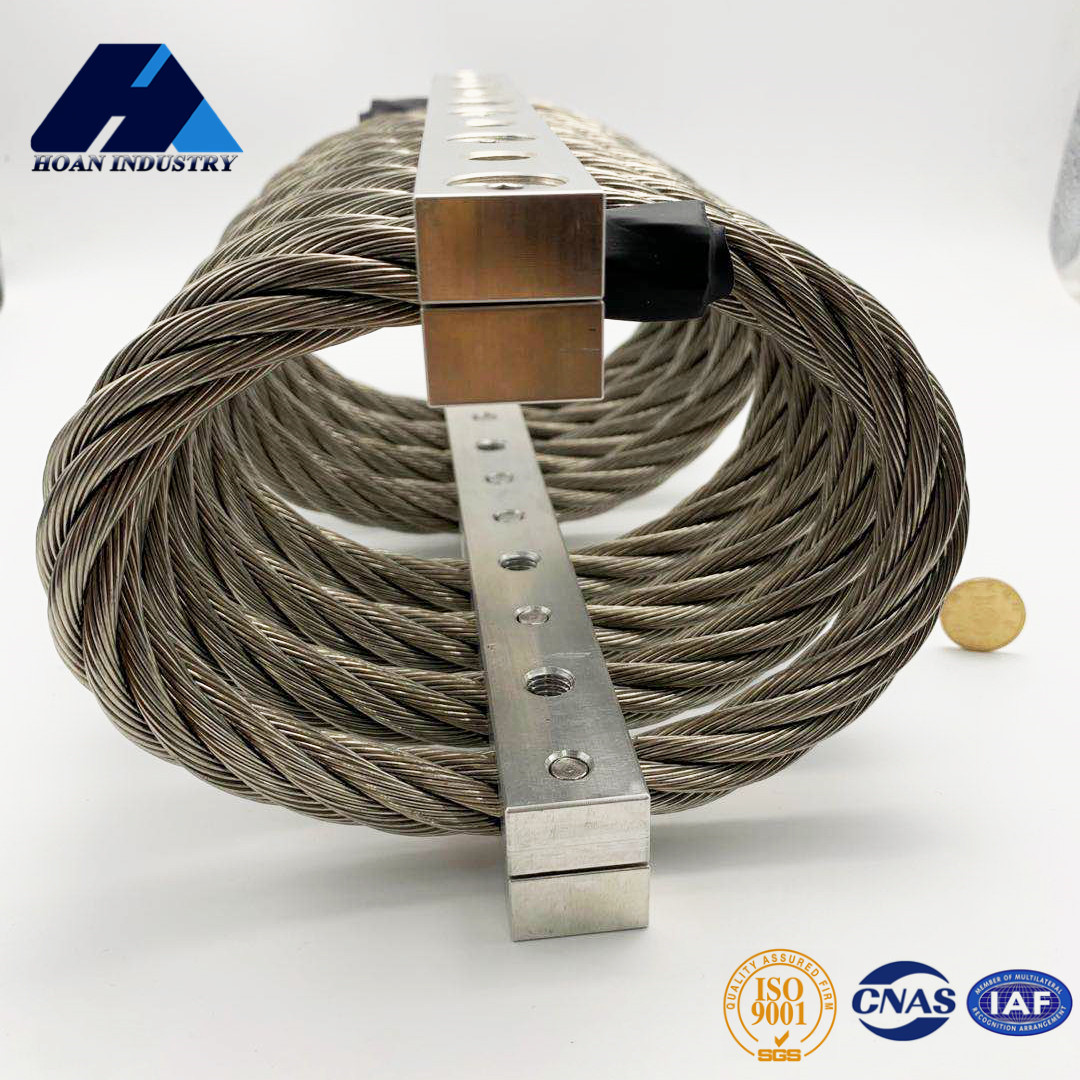

Military Industry Armored Vehicle JGX-1598 Wire Rope Isolator

Military Industry Armored Vehicle JGX-1598 Wire Rope Isolator

Material: Stainless Steel or Aluminum
Certification: ISO9001:2015
Brand Name: Hoan
Place of Origin: Shaanxi, China
Product description: Military Industry Armored Vehicle JGX-1598 Wire Rope Isolator
INQUIRY EMAIL

Product Description:

Product Description

Wire rope isolators are composed by the stainless steel cable and aluminum retaining bars or stainless retaining bars, which provide excellent effect of isolation.

The spring function is created by the elasticity inherent in the flexing of a cable preformed into a loop. The damping function is the result of the relative friction between the cable’s individual wire and strands. The cables, which are made of stainless steel, had the characteristics of superb water-proof, corrosion resistance and steady in use.

The unique characteristics of JGX-1598 series shock isolators are the kind of isolators with great max static load from 285kg to 657kg. The JGX-1598 series shock isolators can be used in any systems or working conditions with big shock.

Nowadays, the JGX-1598 series shock isolators are used widely in the field of military vehicles, armored cars, missile, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

Technical Parameter:

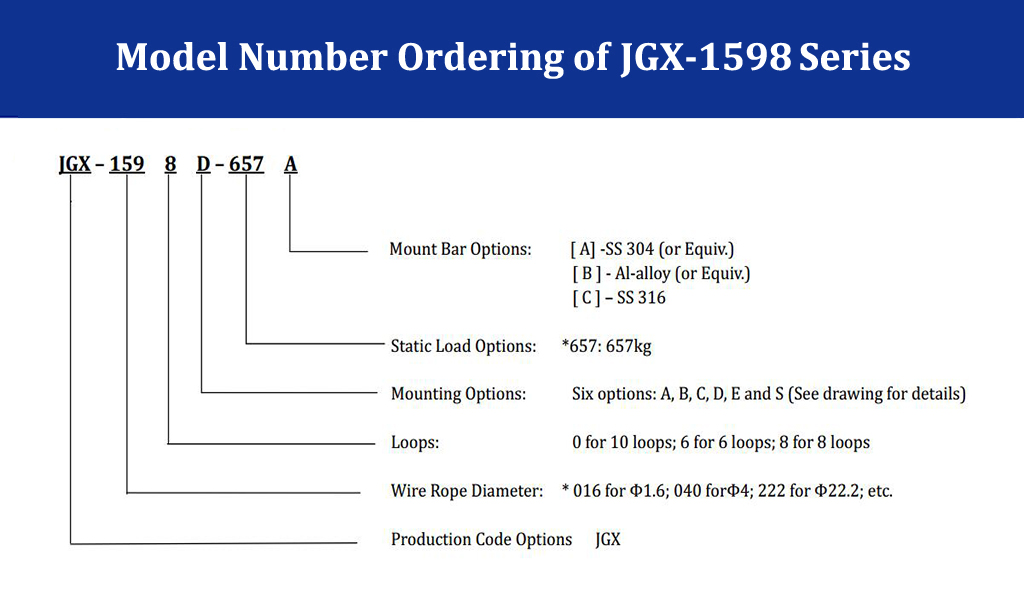

Model Number Code Ordering of JGX-1598 Series:

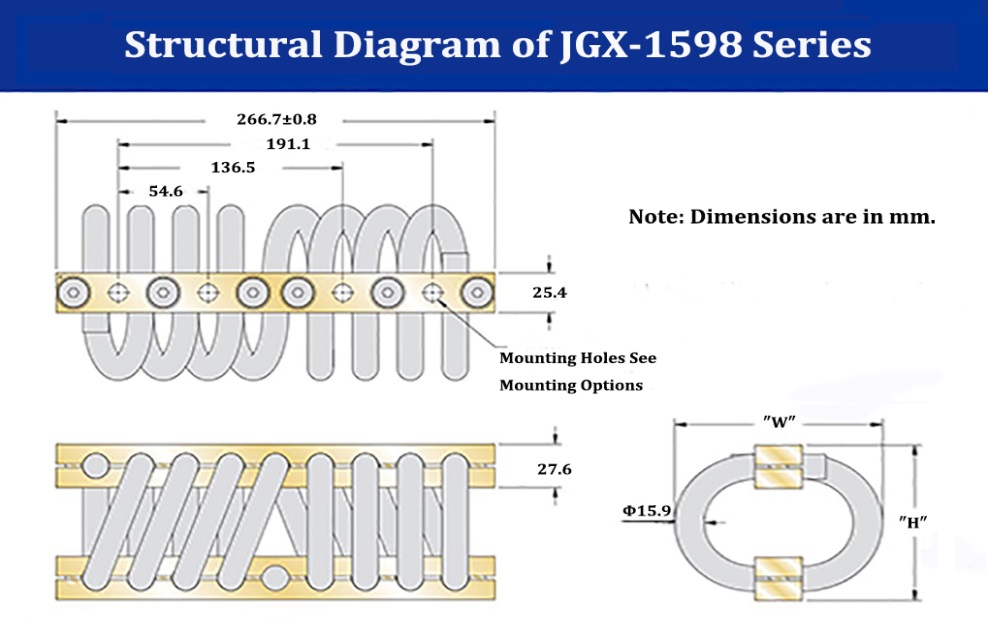

Structural Diagram of JGX-1598 Series:

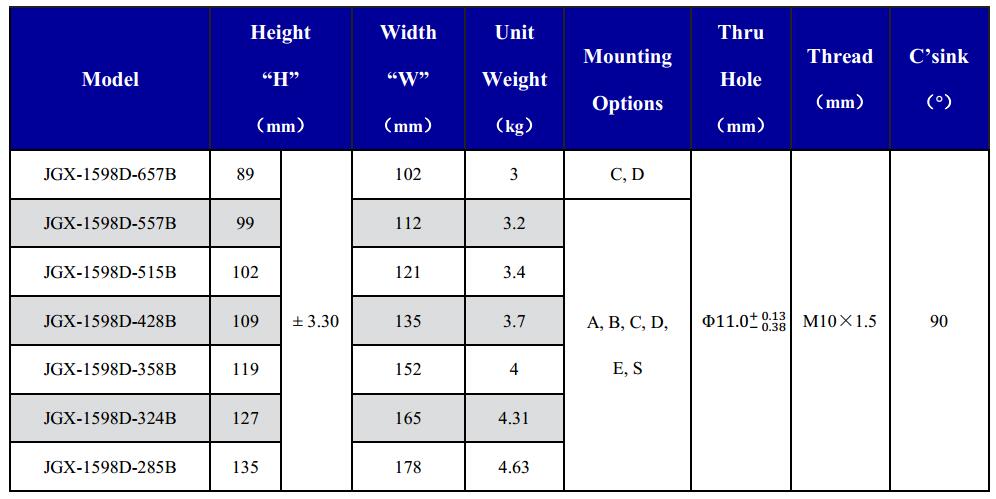

Dimension of JGX-1598 Series:

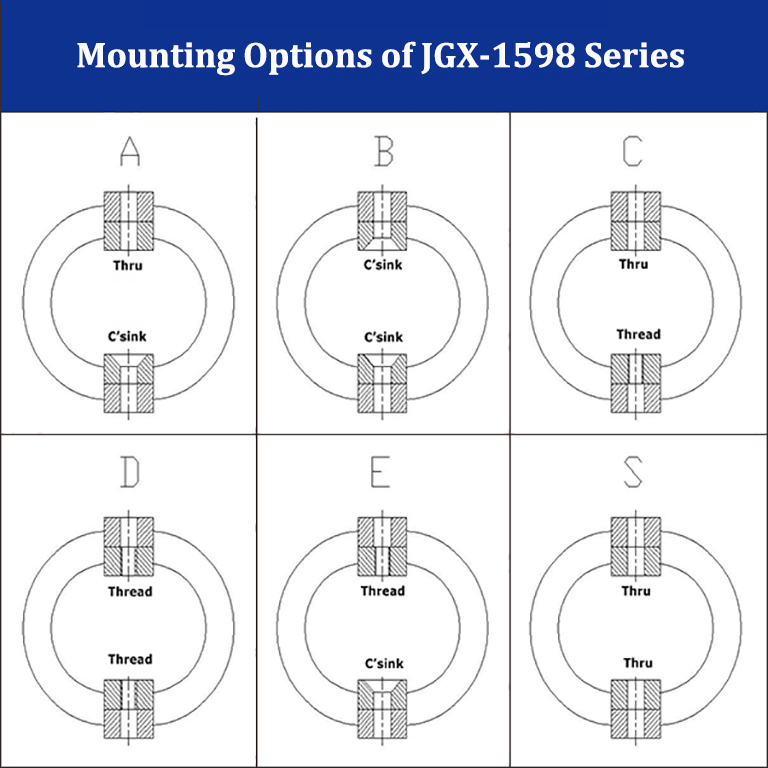

Mounting Options of JGX-1598 Series:

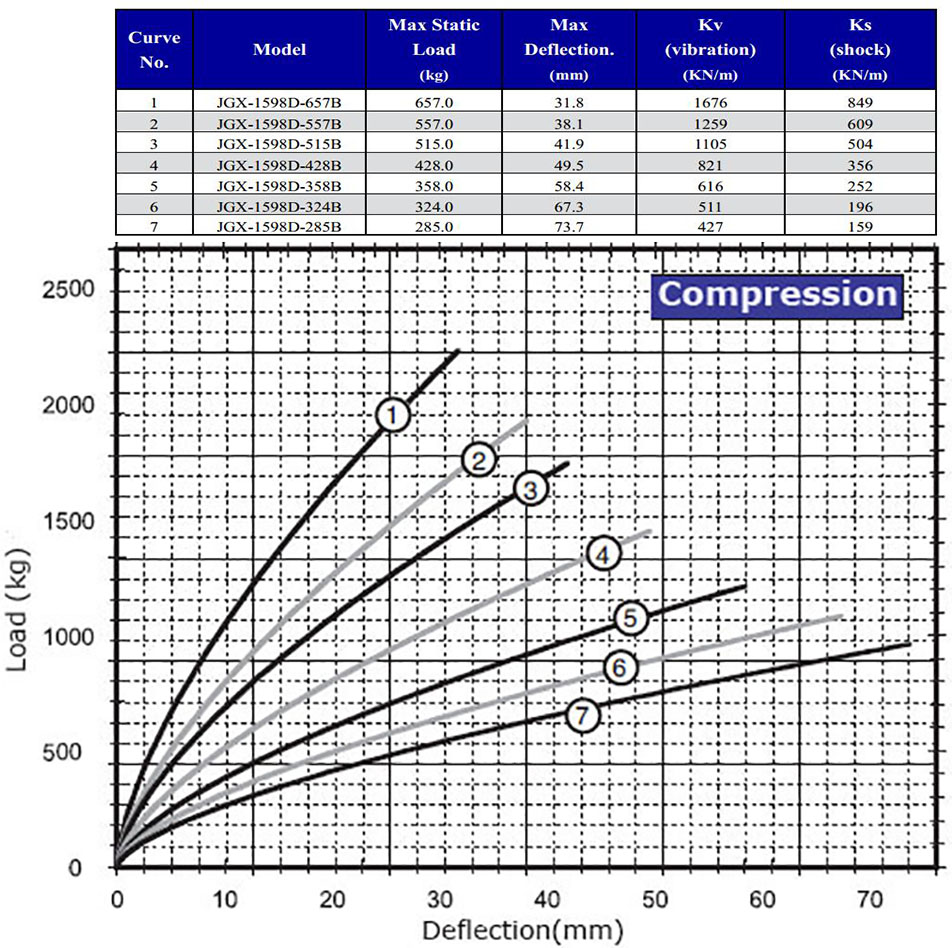

Compression of JGX-1598 Series:

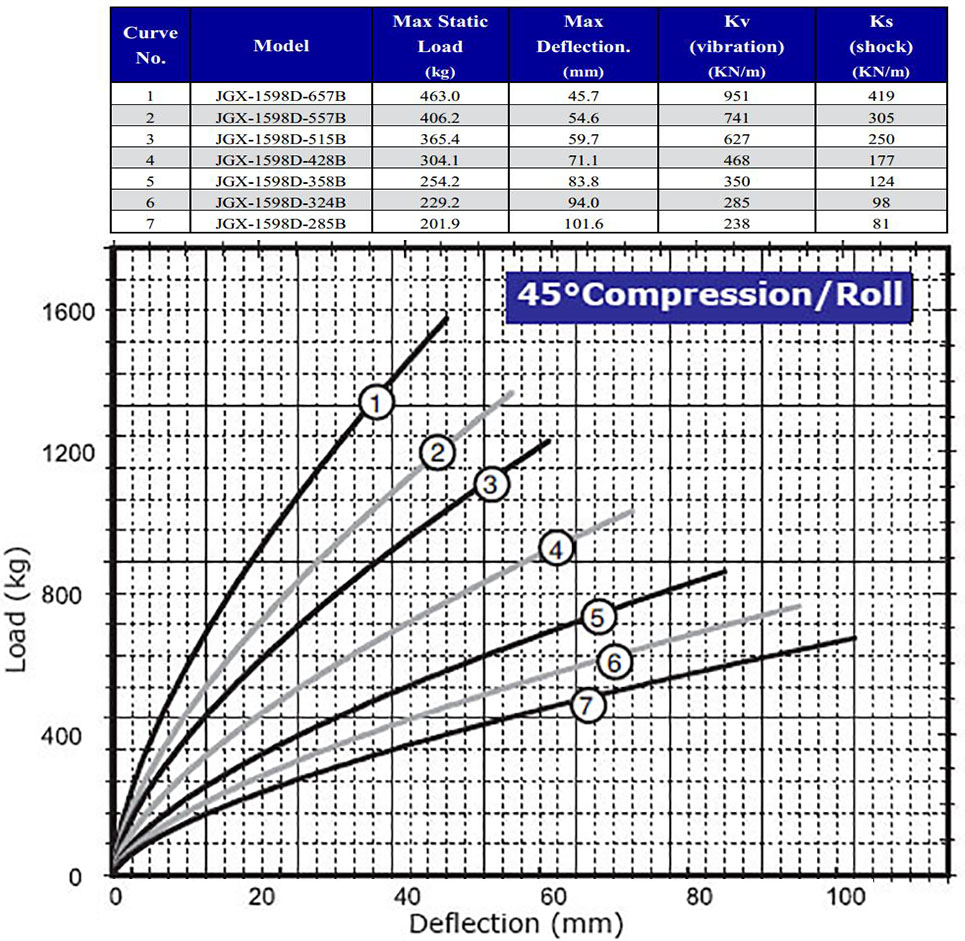

45° Compression of JGX-1598 Series:

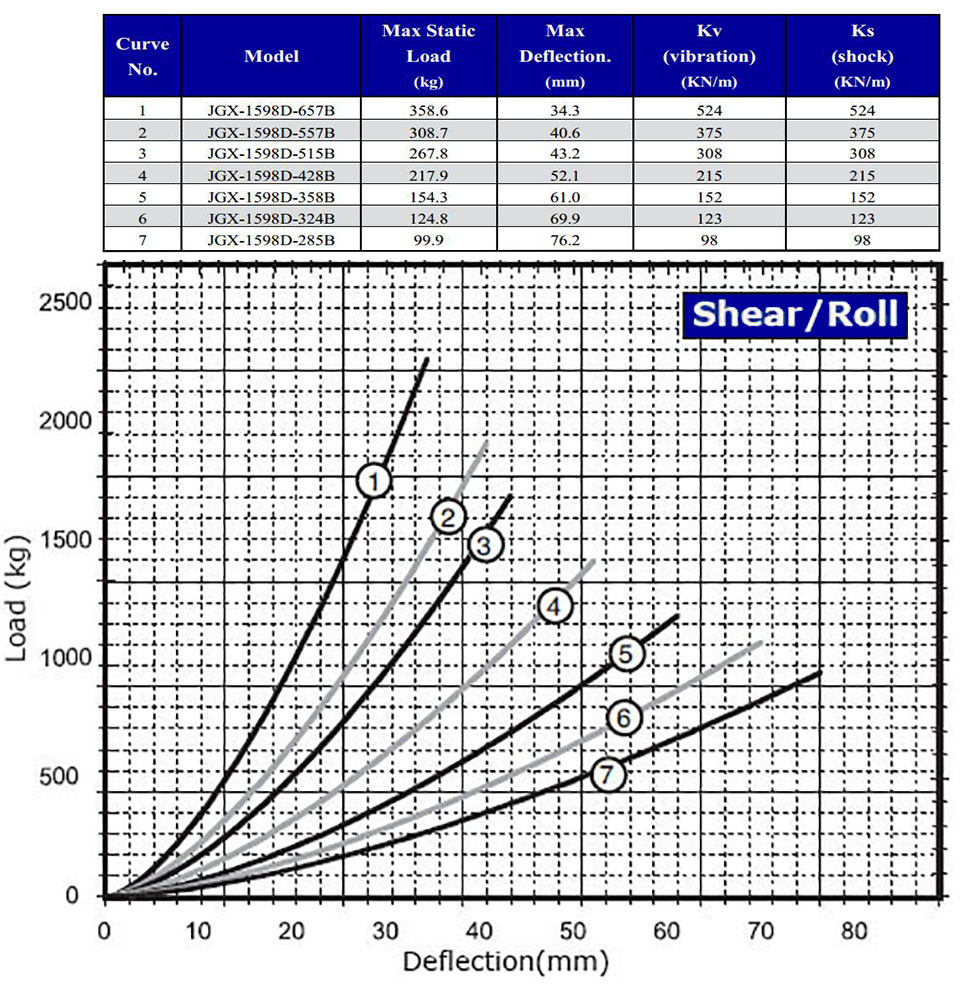

Shear/Roll of JGX-1598 Series:
