Military Compressor Energy JGX-1276 Wire Rope Shock Isolator Military Compressor Energy JGX-1276 Wire Rope Shock Isolator Military Compressor Energy JGX-1276 Wire Rope Shock Isolator

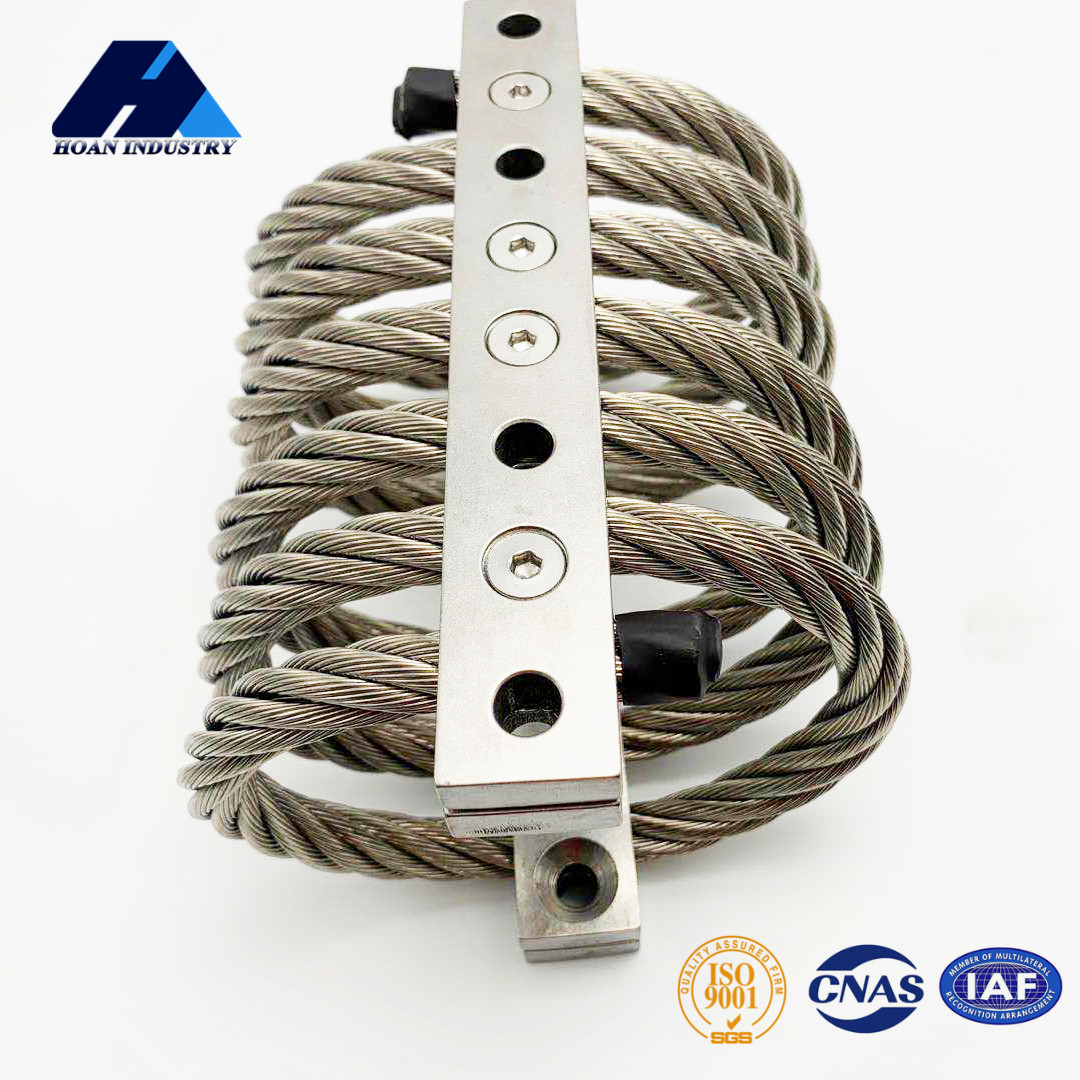

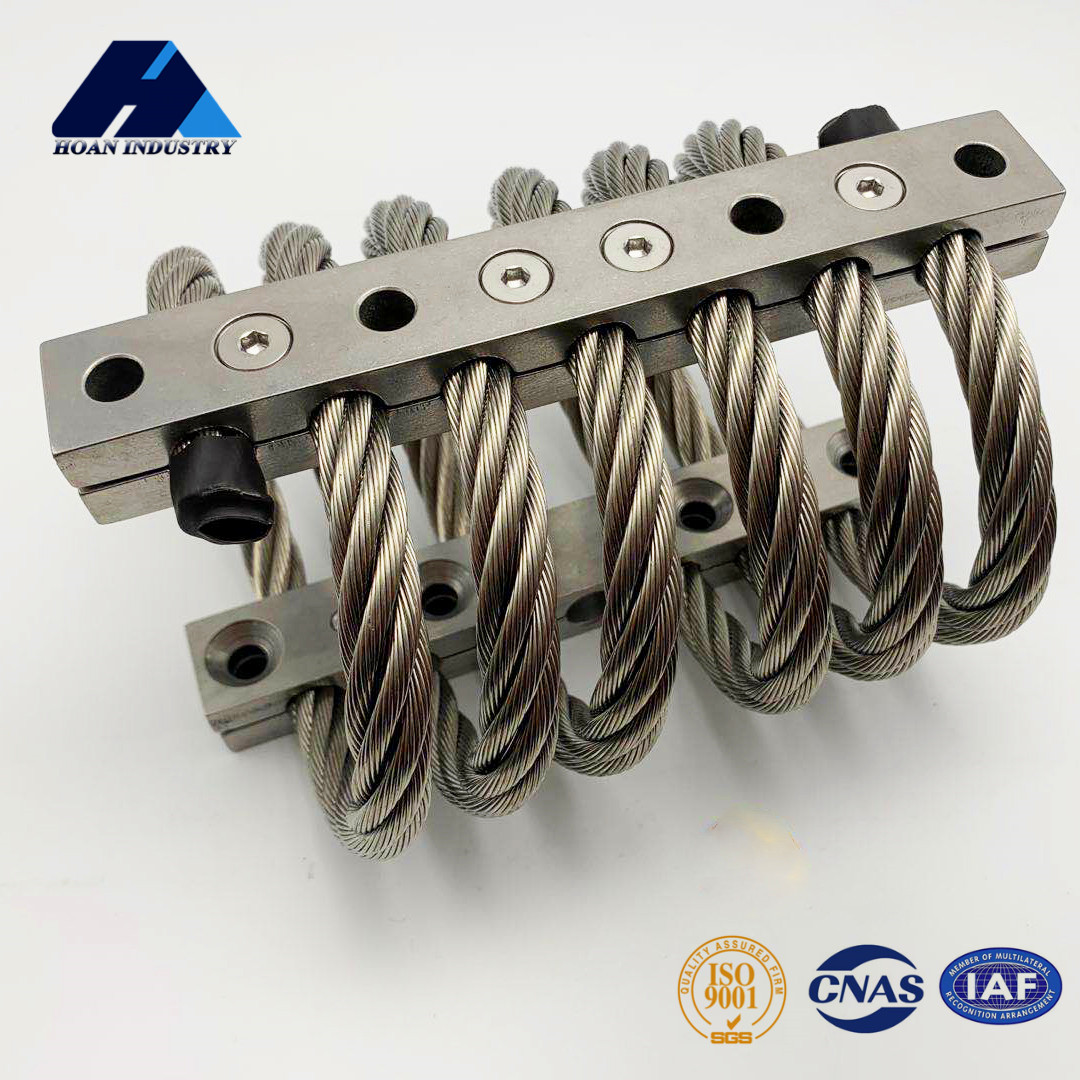

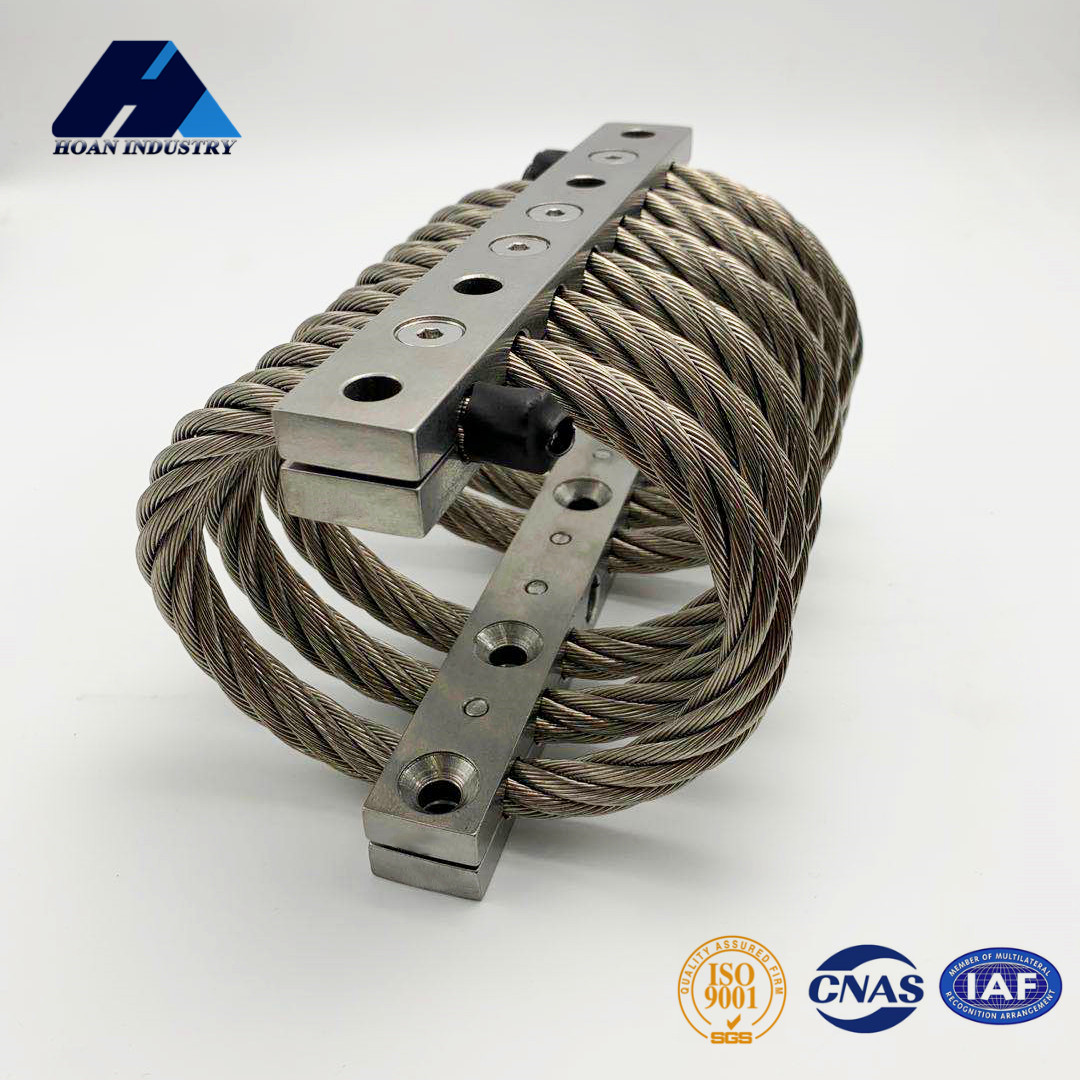

Military Compressor Energy JGX-1276 Wire Rope Shock Isolator

  • Material: Stainless Steel or Aluminum
  • Certification: ISO9001:2015
  • Brand Name: Hoan
  • Place of Origin: Shaanxi, China
  • Product description: Military Compressor Energy JGX-1276 Wire Rope Shock Isolator
  • INQUIRY   EMAIL
Product Description:

Product Description

Xi'an Hoan's extensive range of vibration isolators and elastomeric shock mounts, most equipment can be suspended successfully. Examples of common applications are electronic boxes, computers, monitors, radar units and similar. To use the correct equipment for the particular stress of your case, Hoan’s engineers performs the correct shock calculations.

The spring function is created by the elasticity inherent in the flexing of a cable preformed into a loop. The damping function is the result of the relative friction between the cable’s individual wire and strands. The cables, which are made of stainless steel, had the characteristics of superb water-proof, corrosion resistance and steady in use.

The JGX-1276 series is the new designed 6 loops 12.7mm diameter wire rope isolator with max static load from 92kg to 248kg.

The JGX1276 series wire rope shock isolators are now widely used in the field of military vehicles, armored cars, missile, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.



Technical Parameter:

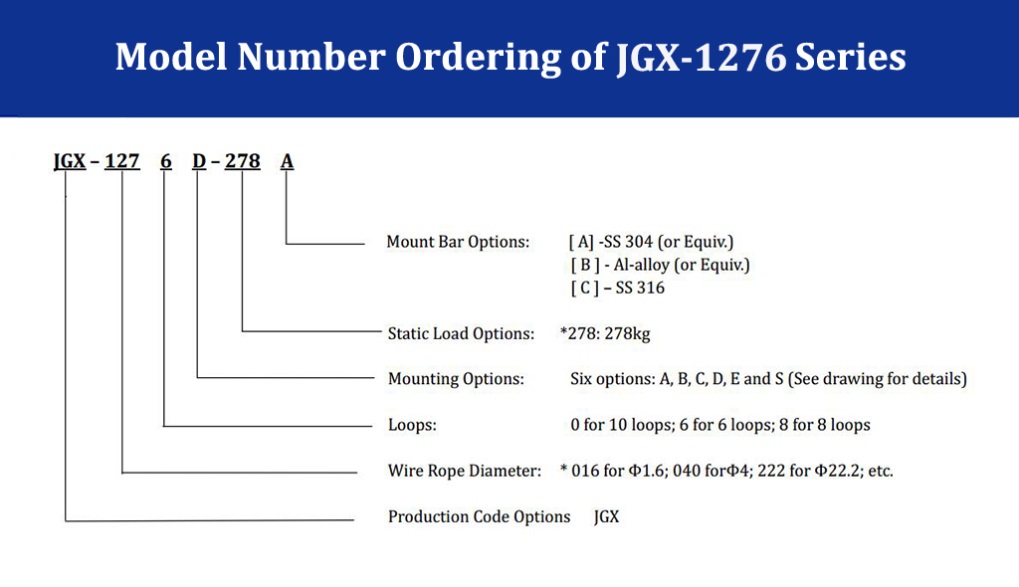

  • Model Number Code Ordering of JGX-1276 Series:

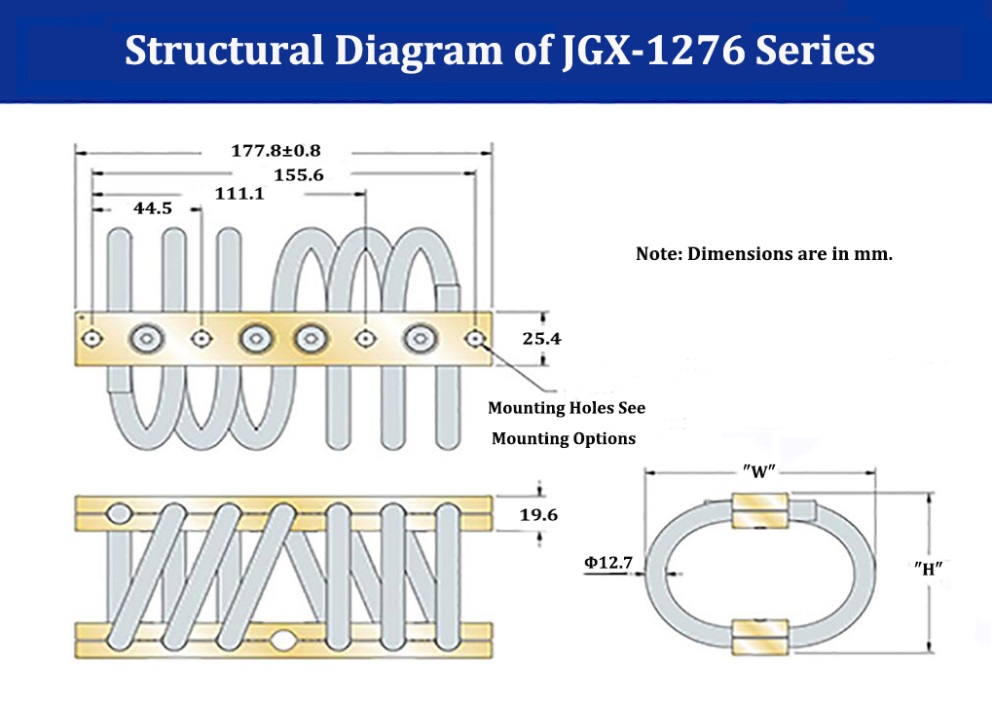

  • Structural Diagram of JGX-1276 Series:

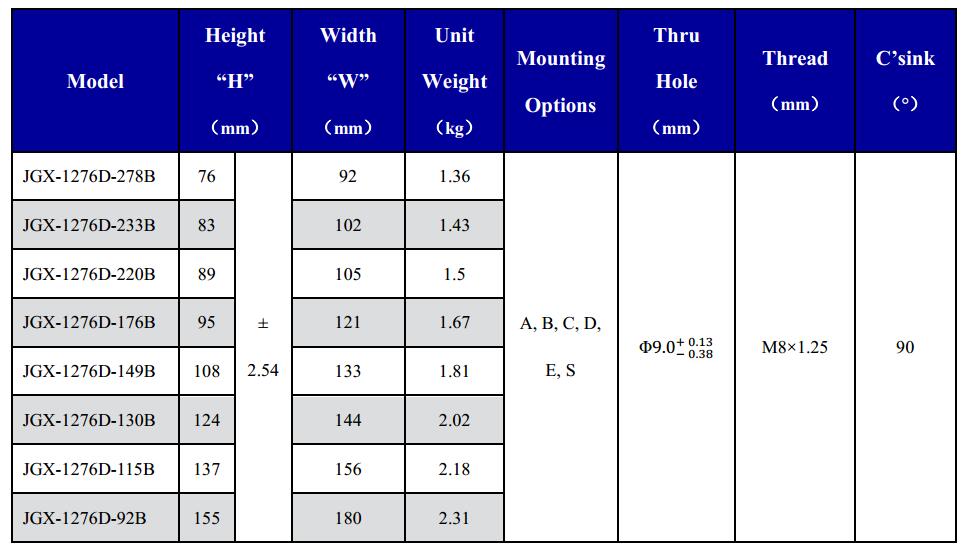

  • Dimension of JGX-1276 Series:

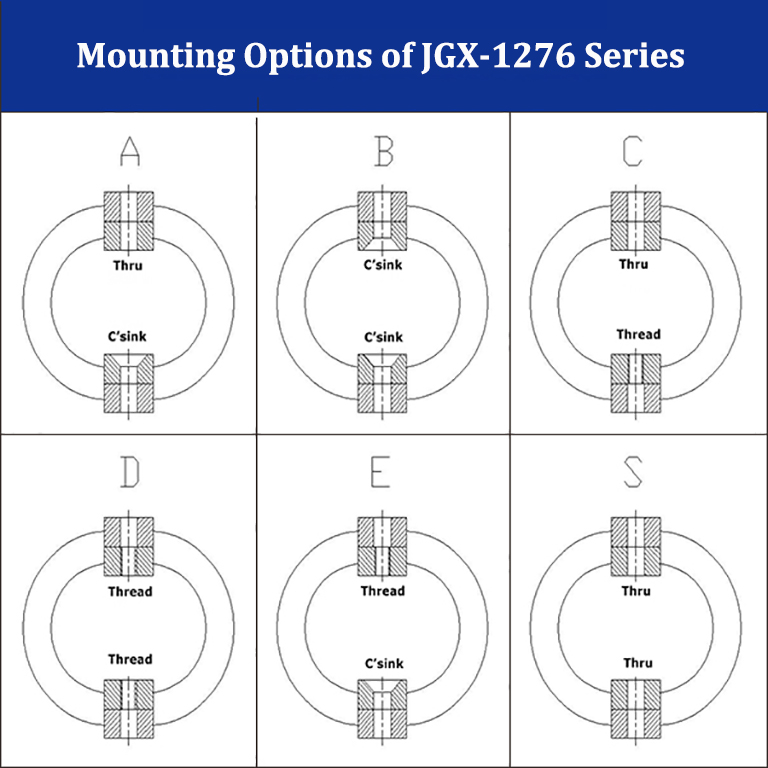

  • Mounting Options of JGX-1276 Series:

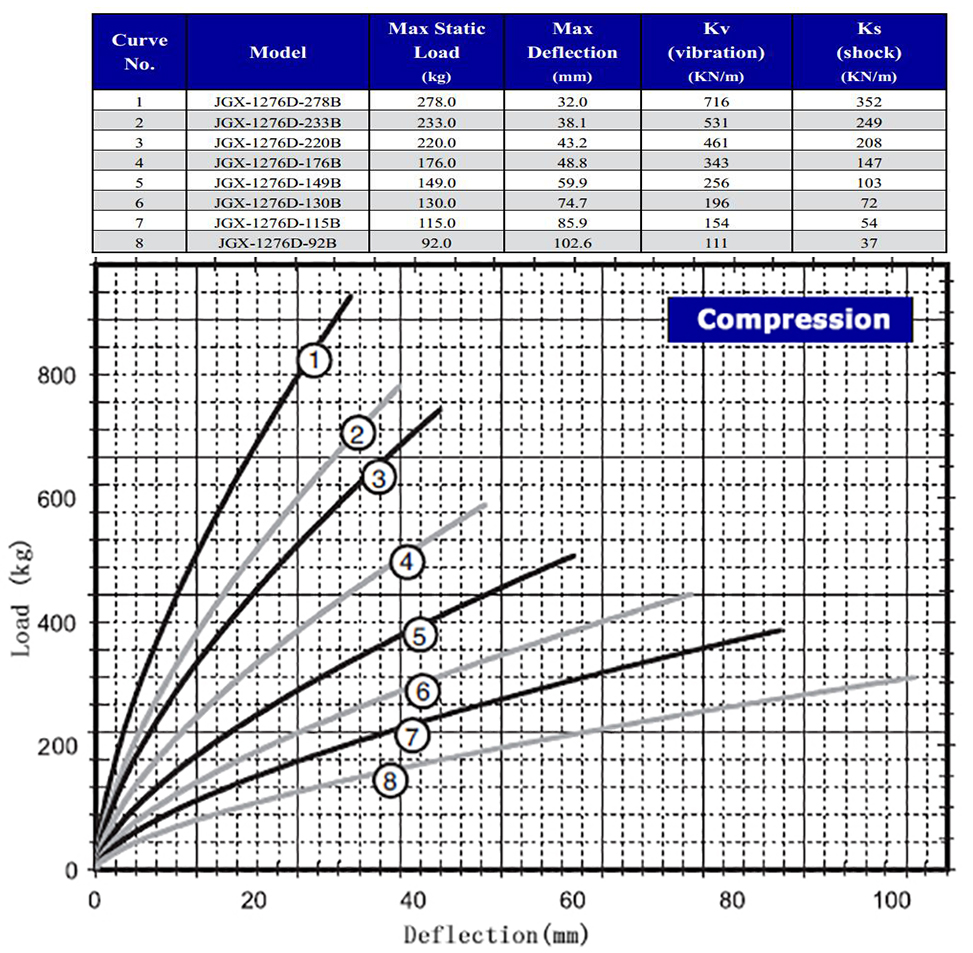

  • Compression of JGX-1276 Series:

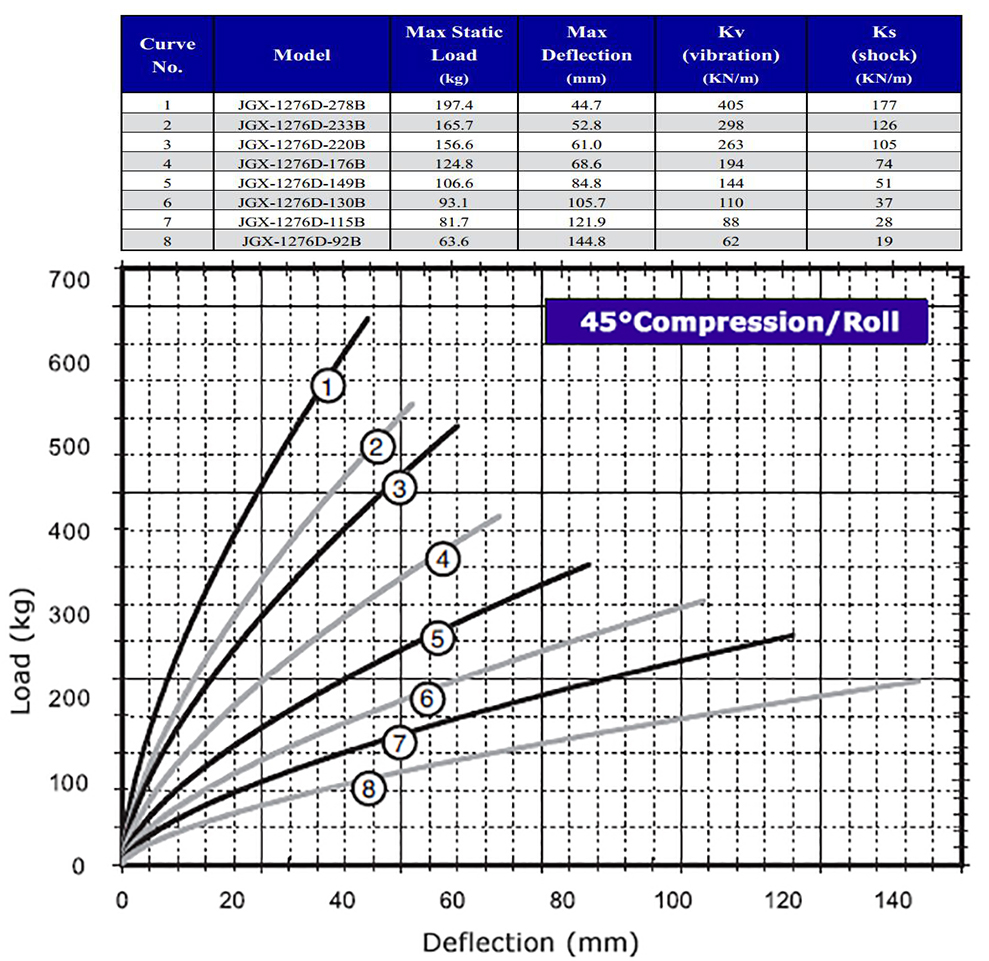

  • 45° Compression of JGX-1276 Series:

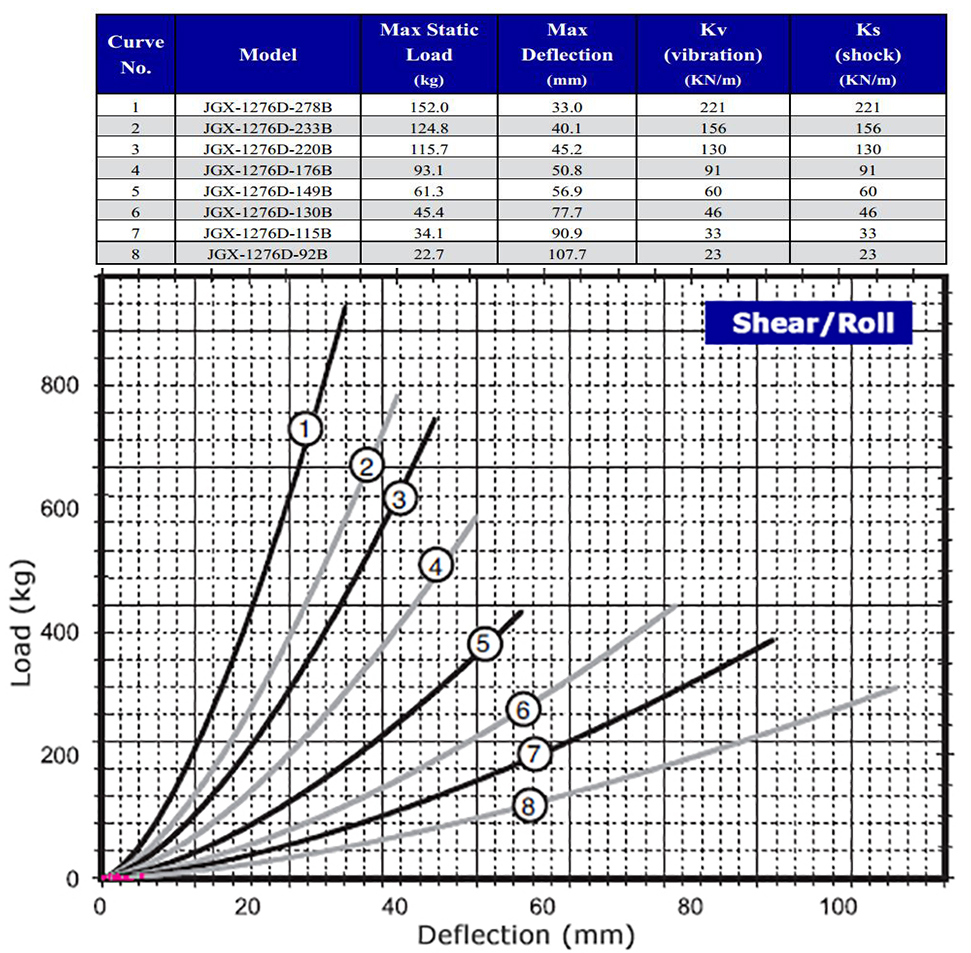

  • Shear/Roll of JGX-1276 Series:
