  • Military Defense Rail Shipbuilding JGX-0958 Vibration Isolator
  • Military Defense Rail Shipbuilding JGX-0958 Vibration Isolator
  • Military Defense Rail Shipbuilding JGX-0958 Vibration Isolator
Military Defense Rail Shipbuilding JGX-0958 Vibration IsolatorMilitary Defense Rail Shipbuilding JGX-0958 Vibration IsolatorMilitary Defense Rail Shipbuilding JGX-0958 Vibration Isolator

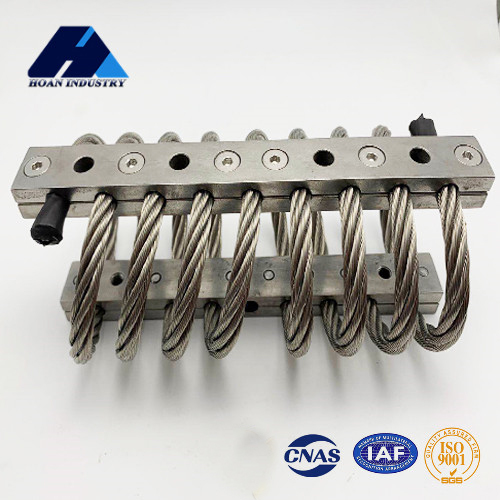

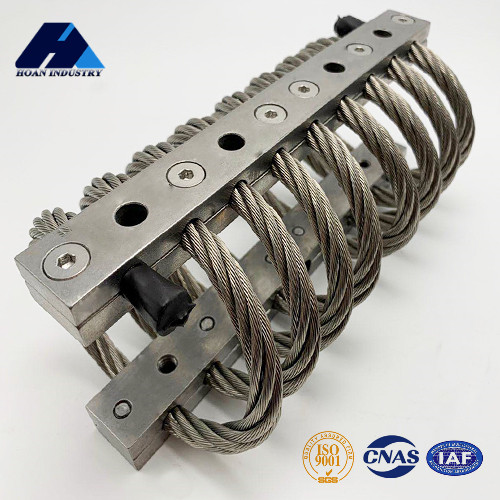

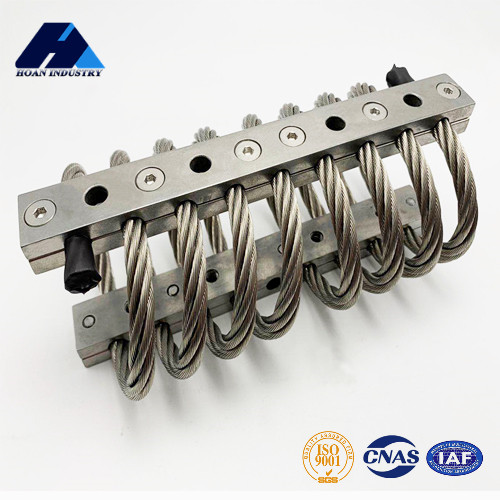

Military Defense Rail Shipbuilding JGX-0958 Vibration Isolator

  • Material: Stainless Steel or Aluminum
  • Certification: ISO9001:2015
  • Brand Name: Hoan
  • Place of Origin: Shaanxi, China
  • Product description: Military Defense Rail Shipbuilding JGX-0958 Vibration Isolator
  • INQUIRY   EMAIL
Product Description:

Product Description

Xi'an Hoan's extensive range of vibration isolators and elastomeric shock mounts, most equipment can be suspended successfully. Examples of common applications are electronic boxes, computers, monitors, radar units and similar. To use the correct equipment for the particular stress of your case, Hoan’s engineers performs the correct shock calculations.

The spring function is created by the elasticity inherent in the flexing of a cable preformed into a loop. The damping function is the result of the relative friction between the cable’s individual wire and strands. The cables, which are made of stainless steel, had the characteristics of superb water-proof, corrosion resistance and steady in use.

The JGX-0958 series is the new designed 6 loops 9.5mm diameter wire rope isolator with max static load from 54kg to 149kg.

The JGX-0958 series wire rope shock isolators are now widely used in the field of military vehicles, armored cars, missile, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.


Technical Parameter:

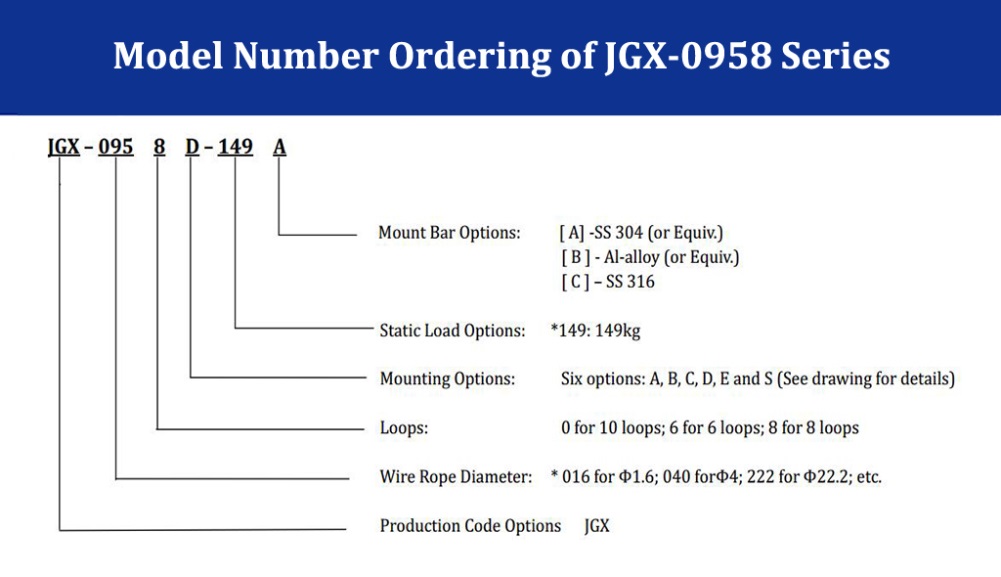

  • Model Number Code Ordering of JGX-0958 Series:

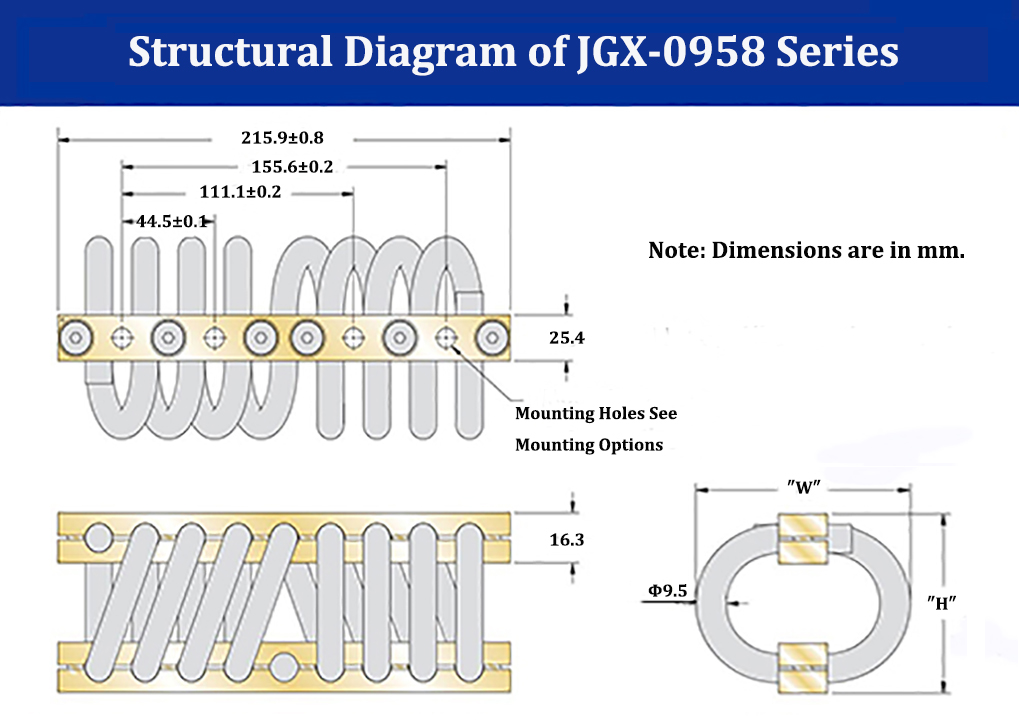

  • Structural Diagram of JGX-0958 Series:

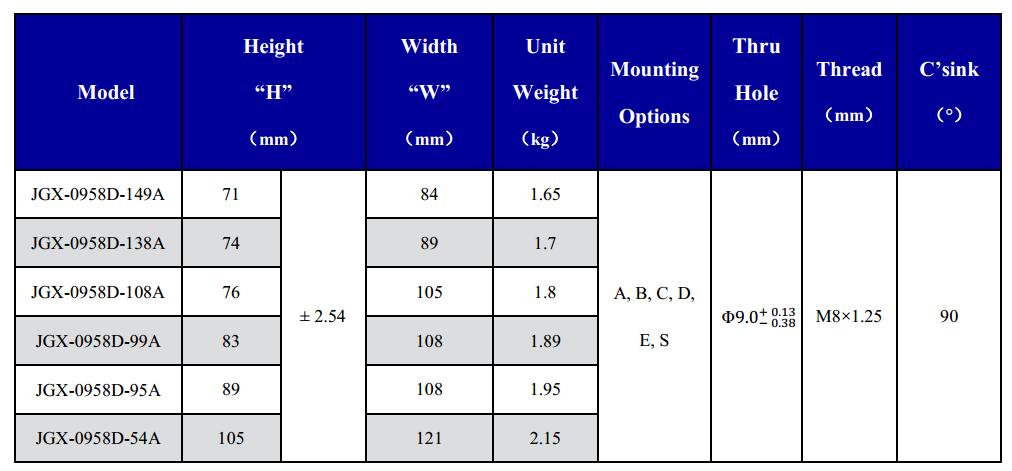

  • Dimension of JGX-0958 Series:

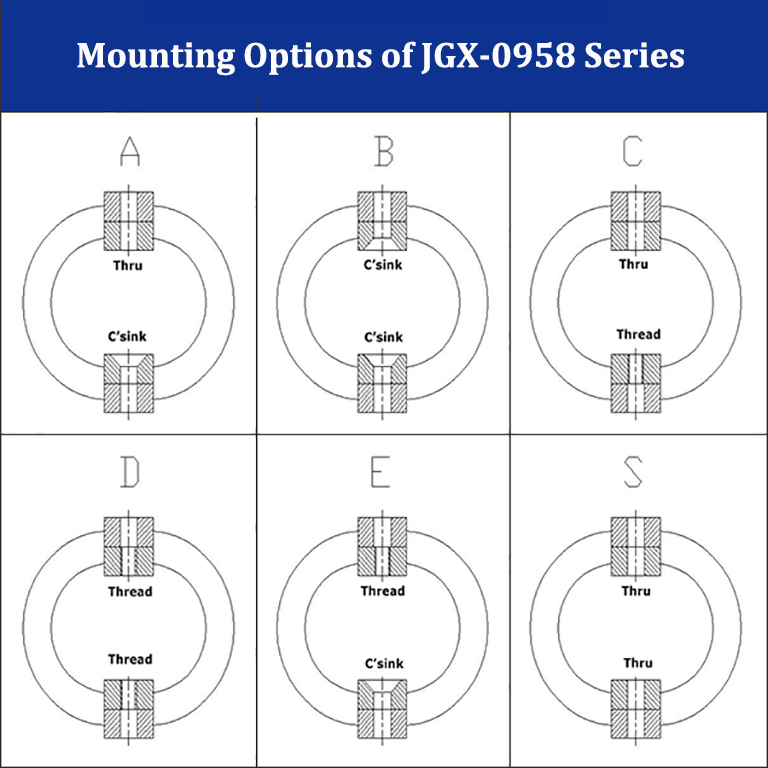

  • Mounting Options of JGX-0958 Series:

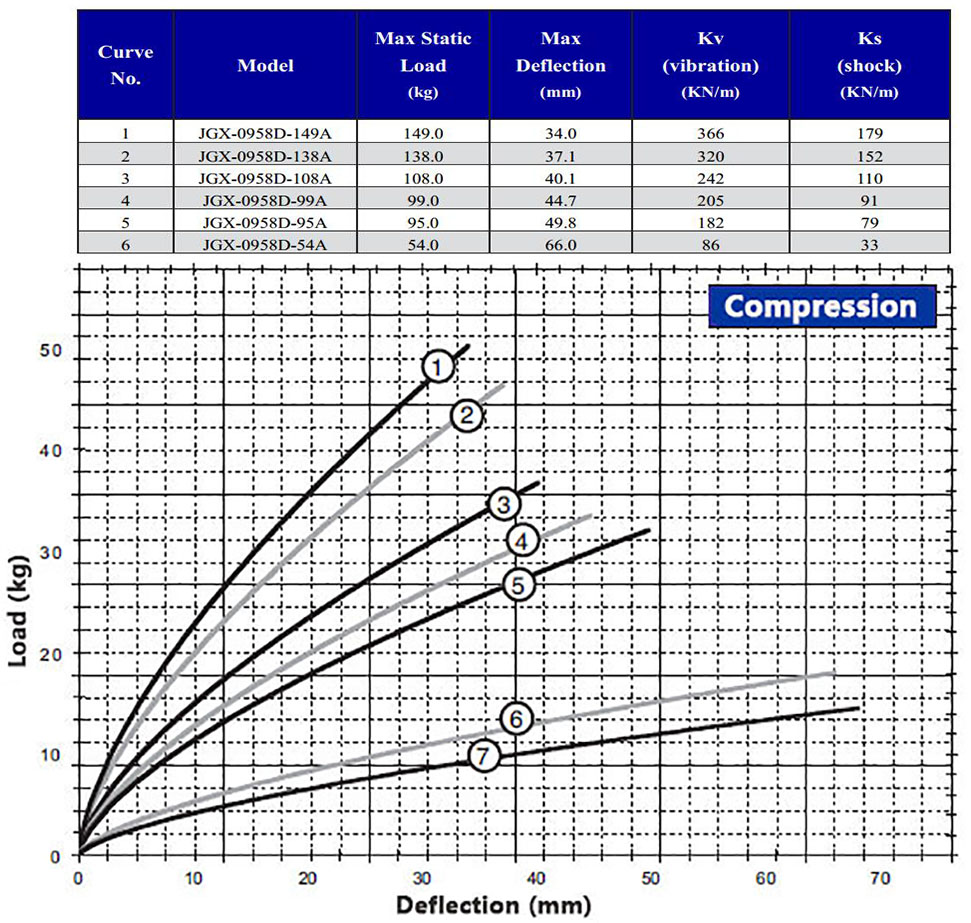

  • Compression of JGX-0958 Series:

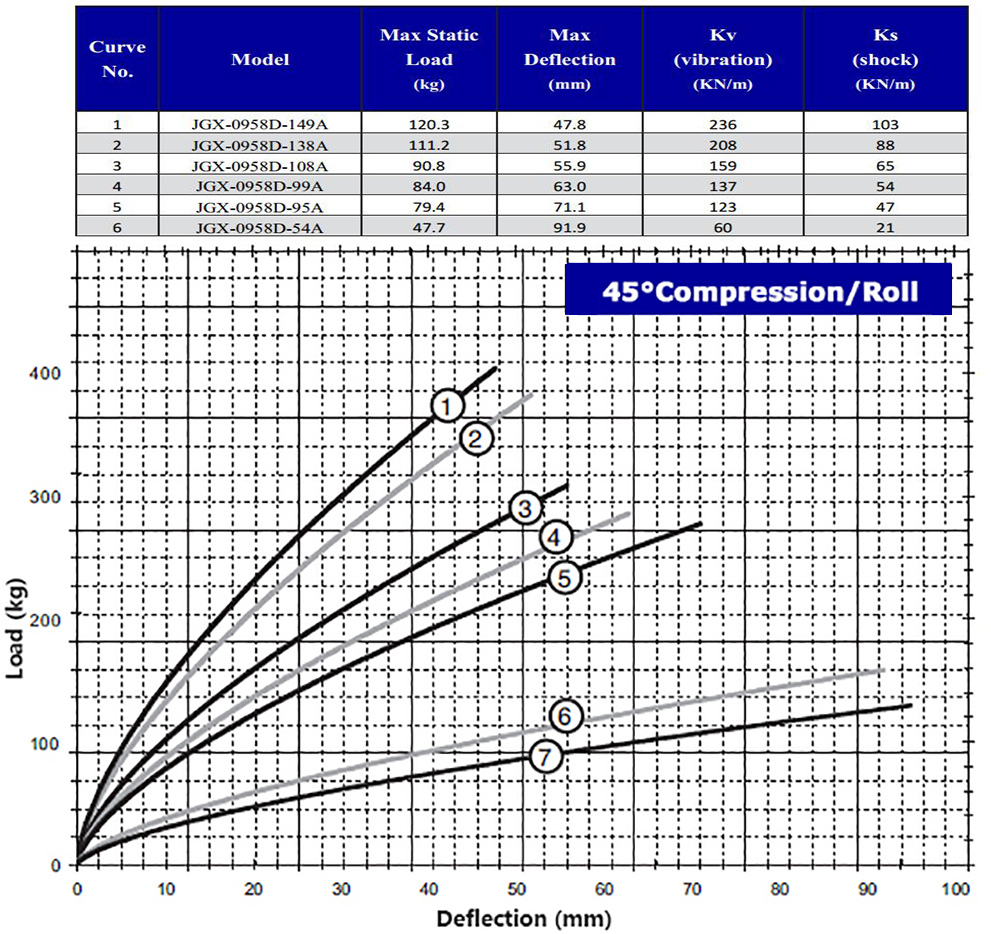

  • 45° Compression of JGX-0958 Series:

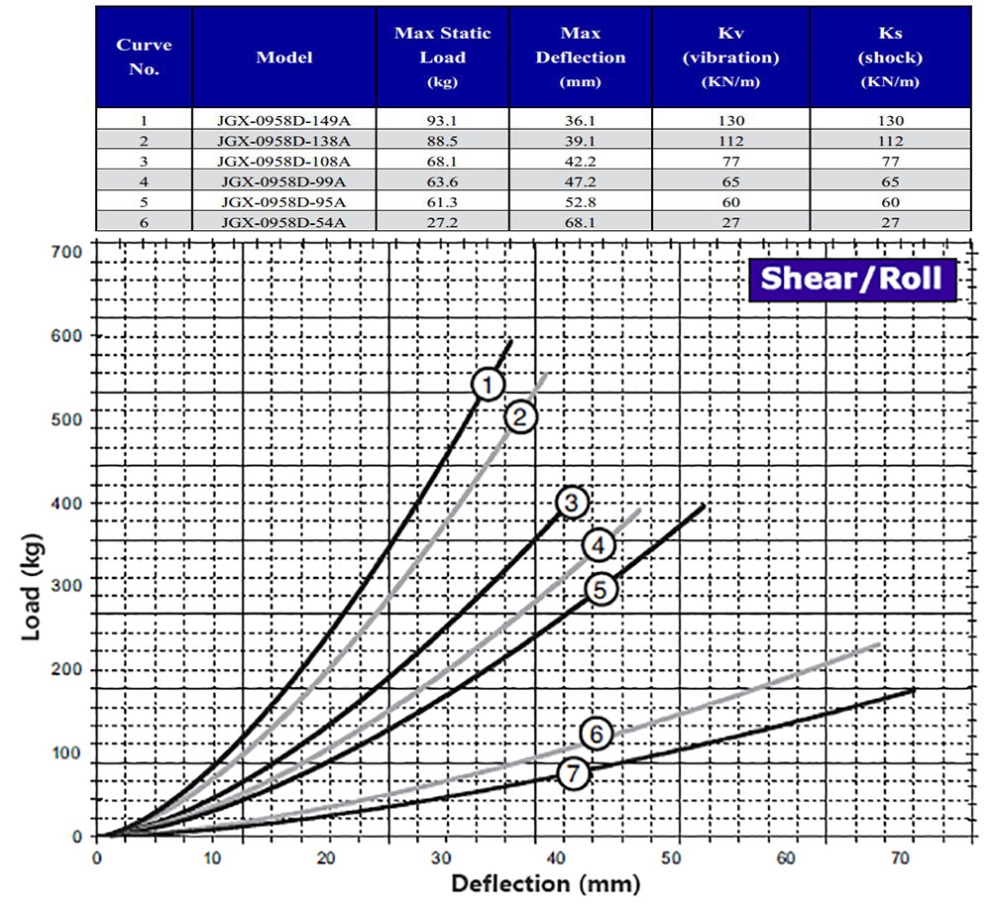

  • Shear/Roll of JGX-0958 Series:



Company Information

Xi'an Hoan Microwave Co. Ltd., headquartered in China, Xi’an city, was founded in 2005, is a premier supplier of Industry Energy Absorption and Vibration Isolation Products.

With almost 13 years professional experience in manufacturing, designing, and researching, our products are widely used throughout the global field of industry, electronics, aeronautics and space, military defense, shipbuilding, transportation, energy, UAV camera, and rail, etc.

We offer various range of vibration isolation products, to create you the ideal safer and better protection against the harm of vibration and shock you are worrying. Our variety types of standard and custom vibration isolation products win us the good reputation of top quality, fast delivery time, professional technical support and service.

We are now the best seller for more than 31 provinces in China and almost 30 overseas countries for areas of motor, fans, punch machine, elevator, compressor, chemical equipment, subway train, bridge, mechanical equipment, large-scale construction, studios, theaters, vehicles, vessels, and machines.

Contact us now to see how our products can benefit your special equipment application demands or in any way that we can help you meet your production requirements.

All your feedback will be appreciated well and help us do better.

The company focuses on product quality, and at the same time focuses on shortening transportation time, providing professional technical assistance and services, and considering for customers. We are your trusted partner.
