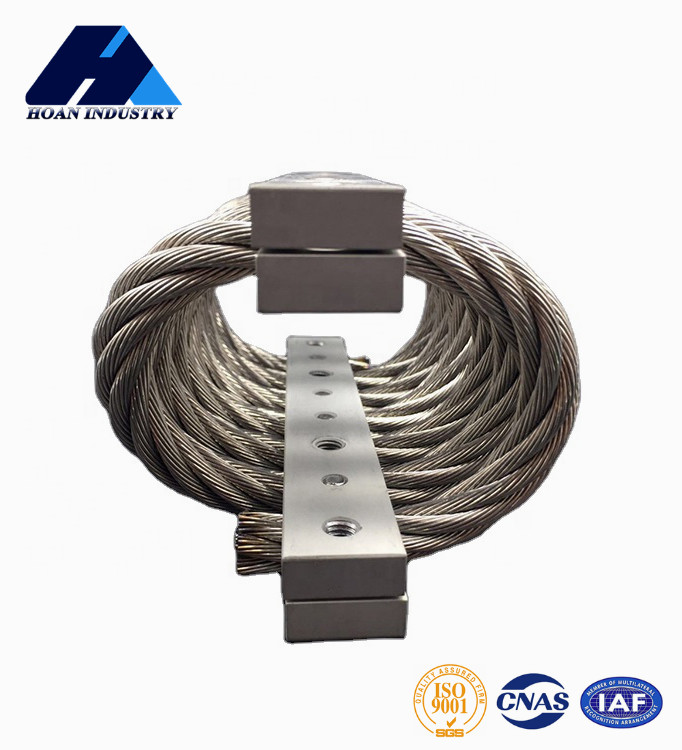

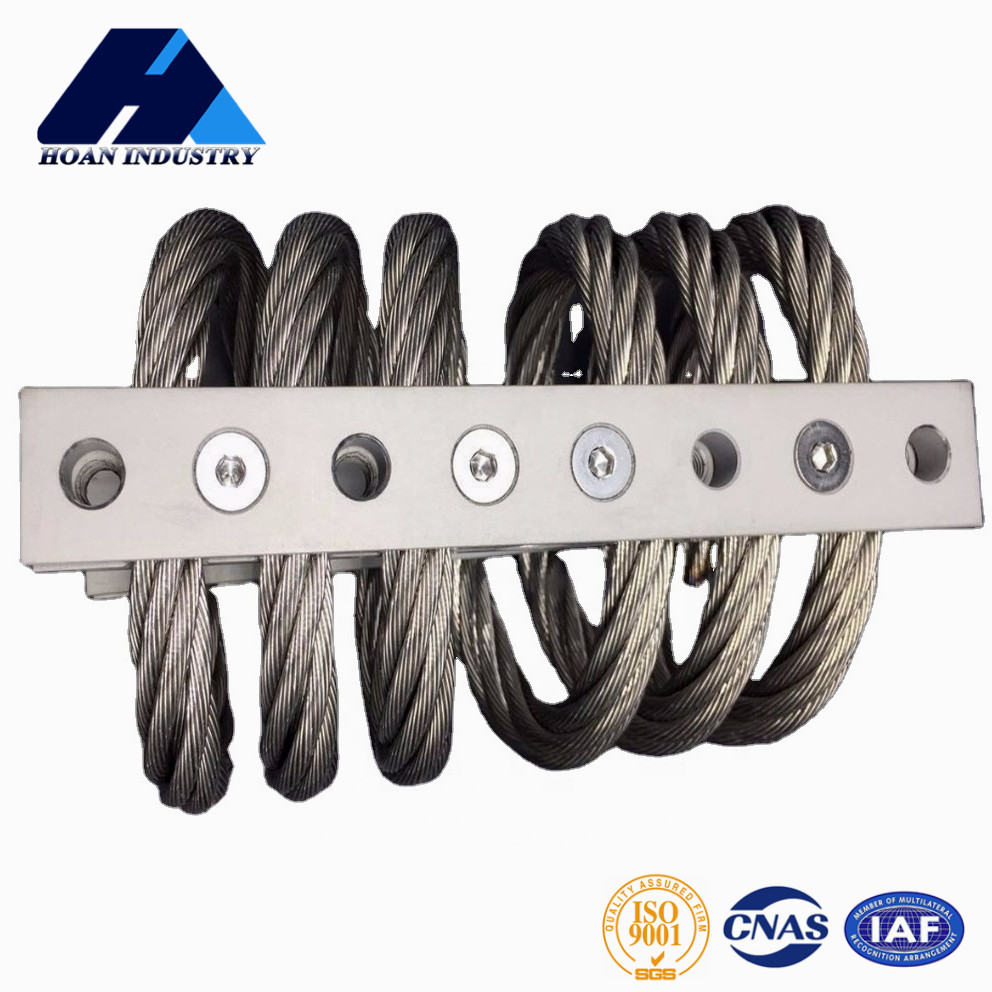

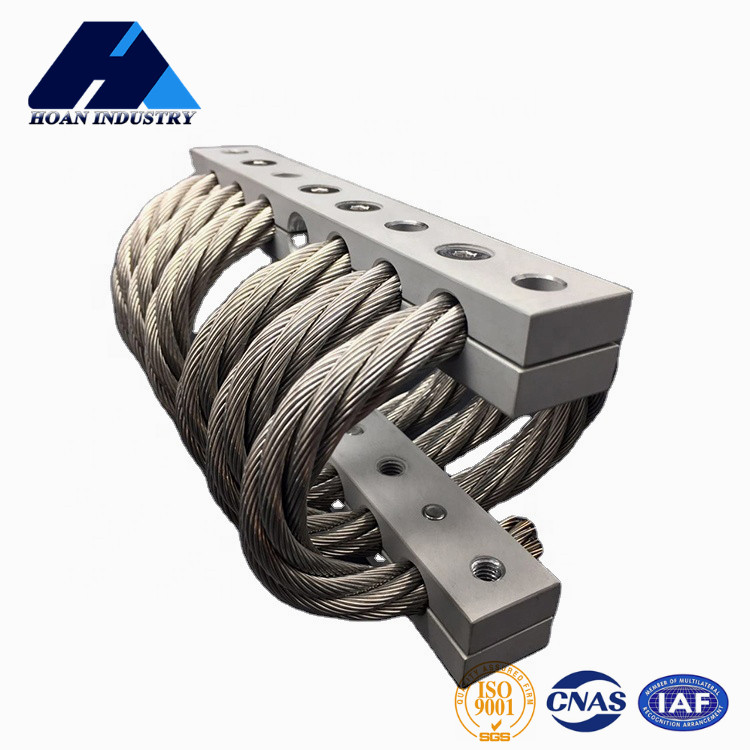

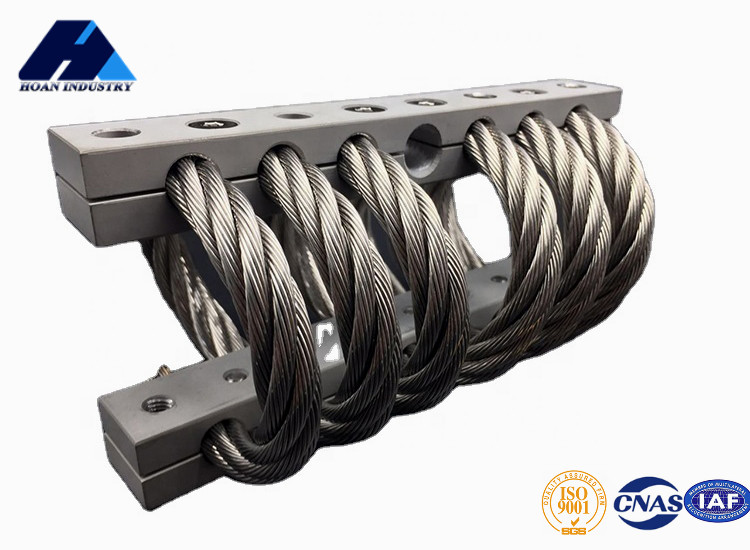

Military Vehicle Energy Generator JGX-0956 Wire Isolation Mount

Military Vehicle Energy Generator JGX-0956 Wire Isolation Mount

Material: Stainless Steel or Aluminum
Certification: ISO9001:2015
Brand Name: Hoan
Place of Origin: Shaanxi, China
Product description: Military Vehicle Energy Generator JGX-0956 Wire Isolation Mount
INQUIRY EMAIL

Product Description:

Product Description

Xi’an Hoan’s extensive range of vibration isolators and elastomeric shock mounts, most equipment can be suspended successfully. Examples of common applications are electronic boxes, computers, monitors, radar units and similar. To use the correct equipment for the particular stress of your case, Hoan’s engineers performs the correct shock calculations.

JGX-0956 series wire isolation mount is environmentally stable, high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.

The spring function is created by the elasticity inherent in the flexing of a cable preformed into a loop. The damping function is the result of the relative friction between the cable’s individual wire and strands. The cables, which are made of stainless steel, had the characteristics of superb water-proof, corrosion resistance and steady in use.

JGX-0956 series the new designed 6 loops 9.5mm diameter model with max static load from 32kg to 110kg, especially used in any instruments or systems for noise attenuation.

The JGX-0956 series is now widely used in the field of military vehicles, armored cars, missile, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

Technical Parameter:

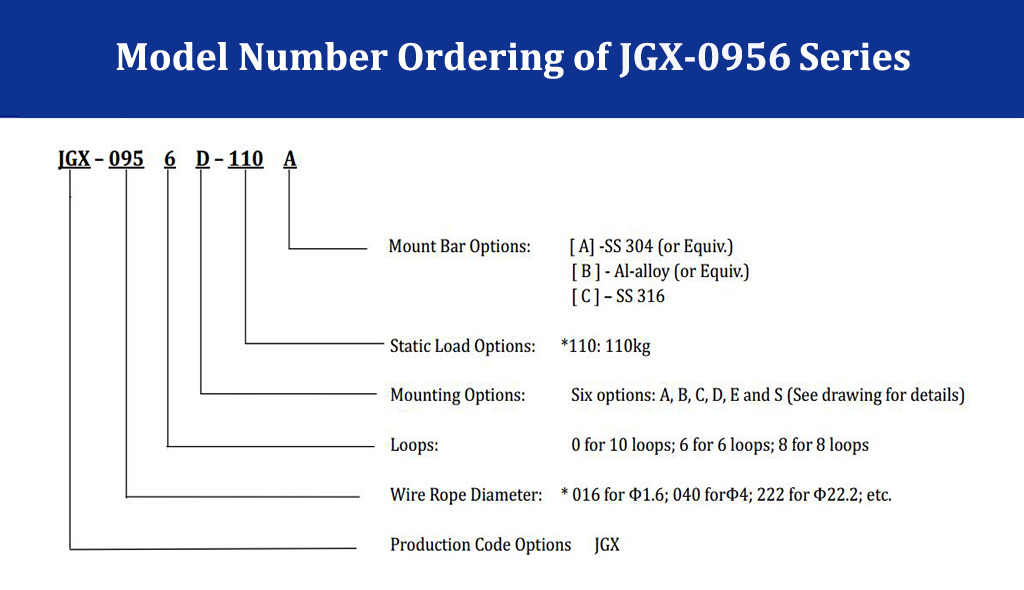

Model Number Code Ordering of JGX-0956 Series:

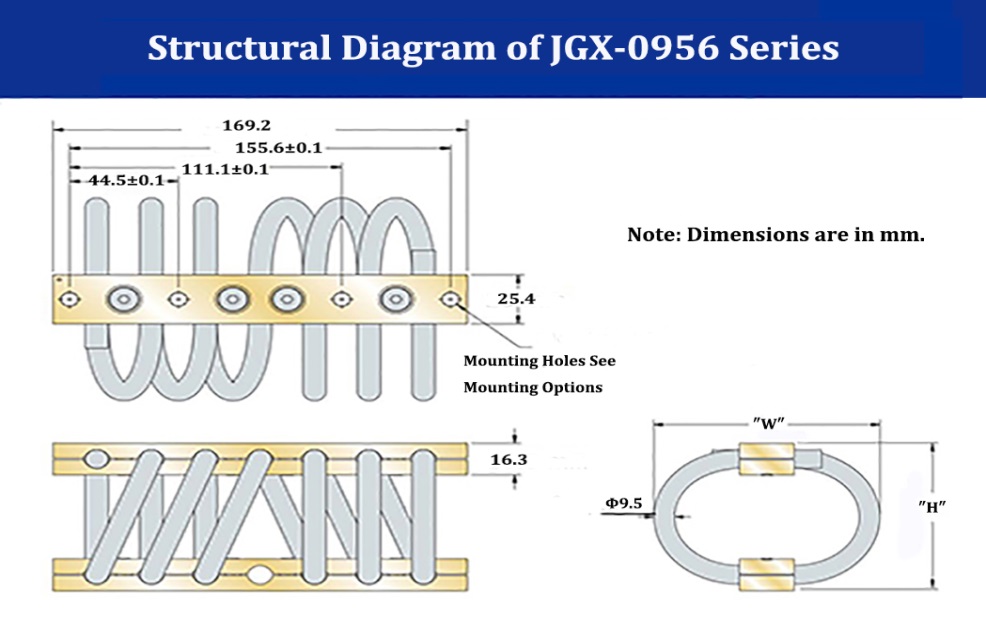

Structural Diagram of JGX-0956 Series:

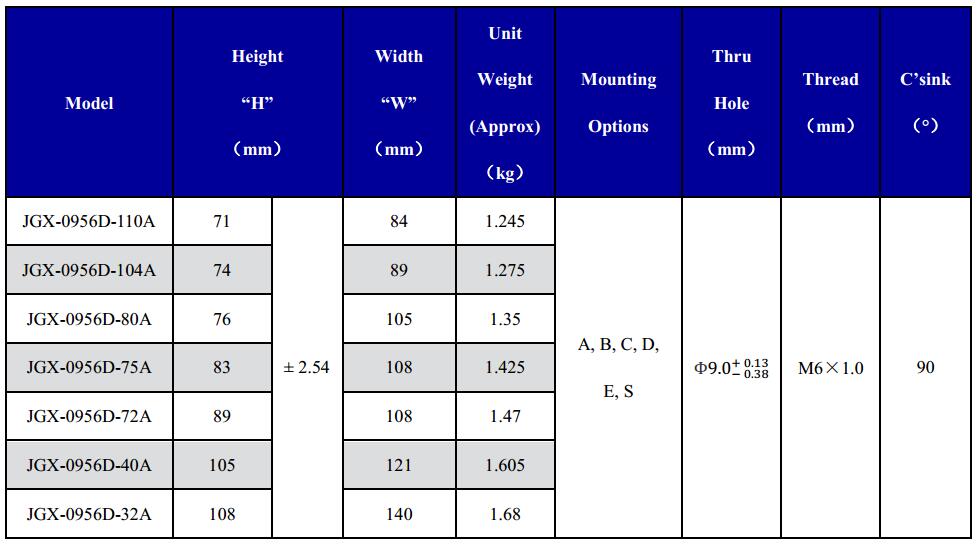

Dimension of JGX-0956 Series:

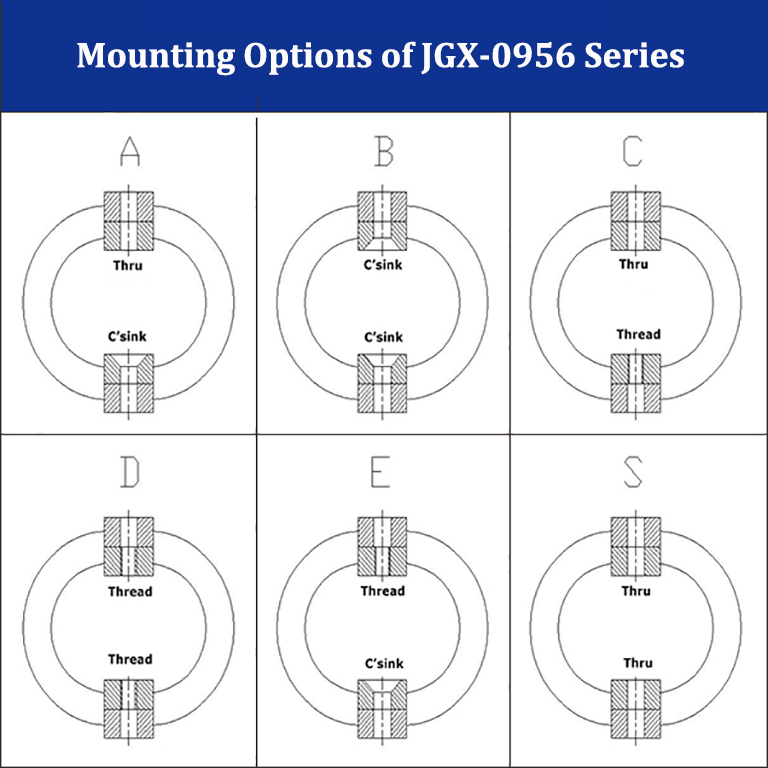

Mounting Options of JGX-0956 Series:

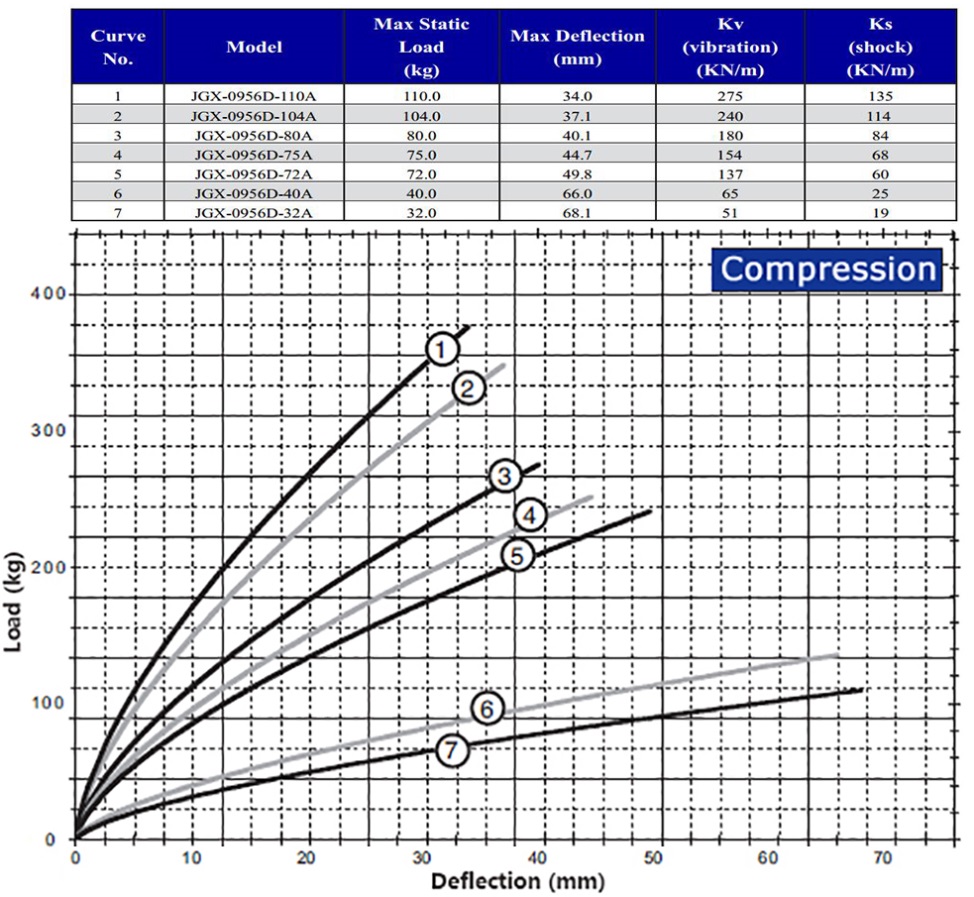

Compression of JGX-0956 Series:

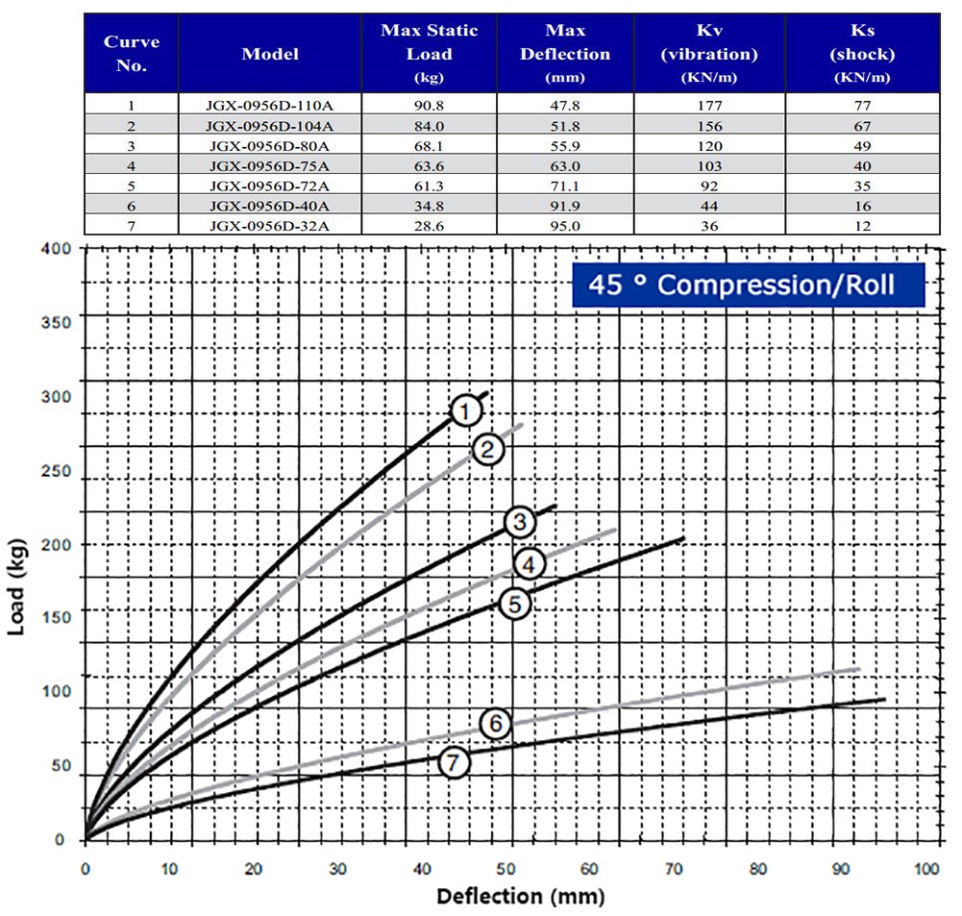

45° Compression of JGX-0956 Series:

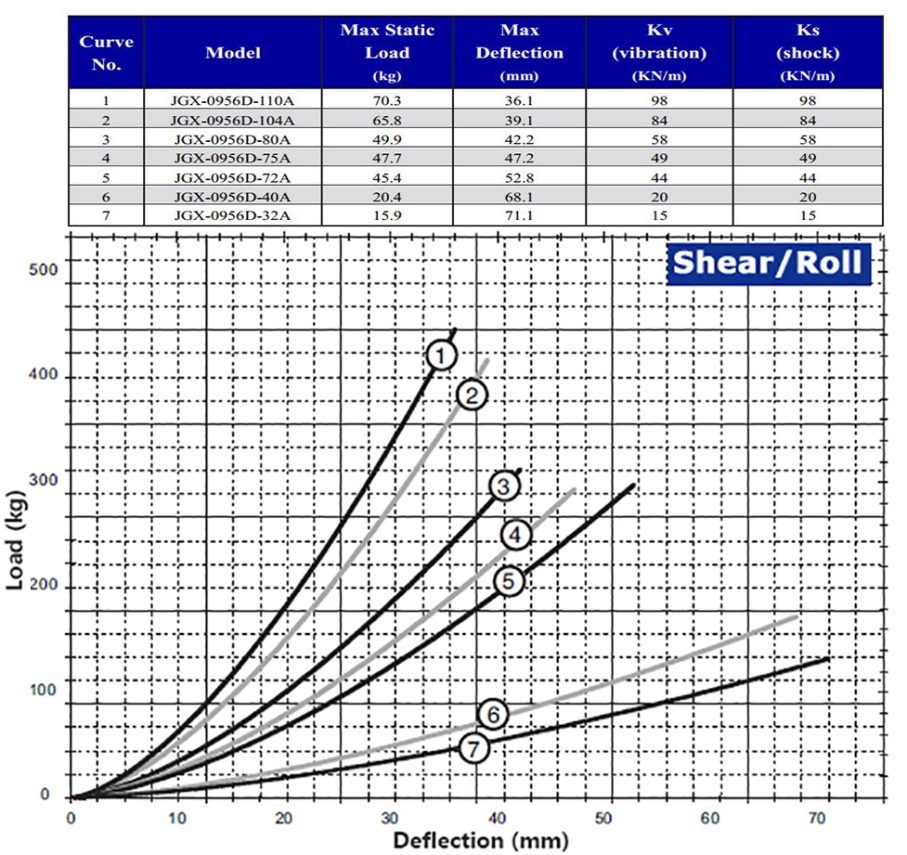

Shear/Roll of JGX-0956 Series:
