Machine Transportation Cabinet JGX-0320 Wire Rope IsolatorMachine Transportation Cabinet JGX-0320 Wire Rope IsolatorMachine Transportation Cabinet JGX-0320 Wire Rope Isolator

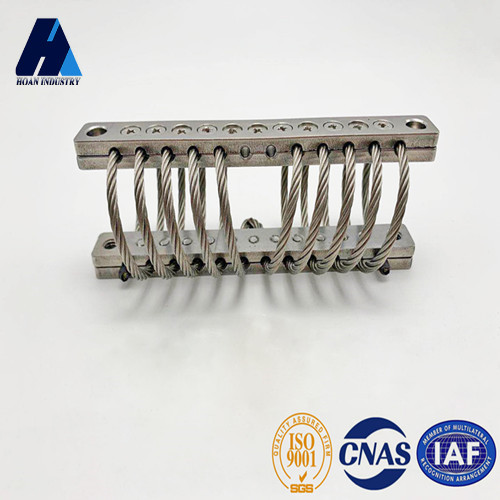

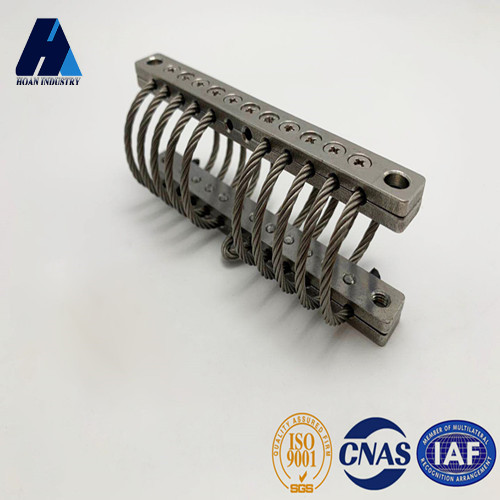

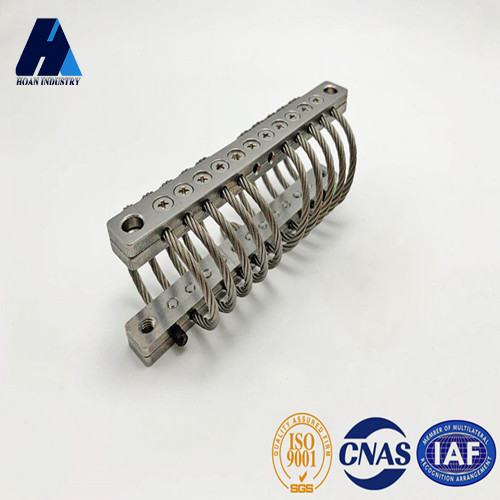

Machine Transportation Cabinet JGX-0320 Wire Rope Isolator

  • Material: Stainless Steel or Aluminum
  • Certification: ISO9001:2015
  • Brand Name: Hoan
  • Place of Origin: Shaanxi, China
  • Product description: Machine Transportation Cabinet JGX-0320 Wire Rope Isolator
  • INQUIRY   EMAIL
Product Description:

Product Description

Wire rope isolators are used to control vibration produced by motors for noise attenuation. They are made by the stainless steel stranded cable threaded through stainless steel or aluminum retaining bars, in order to provide perfect vibration isolation any time in use.


JGX-0320 multi-application wire rope isolator is the new designed 10 loops 3.2mm diameter model with max static load from 12kg to 22kg, especially used in the precise instruments or systems for noise attenuation.


With 6 different mounting options and versatile size variation for your selection, the multi-application wire rope isolator can meet all your needs for military defense, industrial, marine, transportation and any commercial uses.


The JGX-0320 multi-application stainless steel wire rope isolator is used widely in the field of defense, military vehicles, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

Technical Parameter:

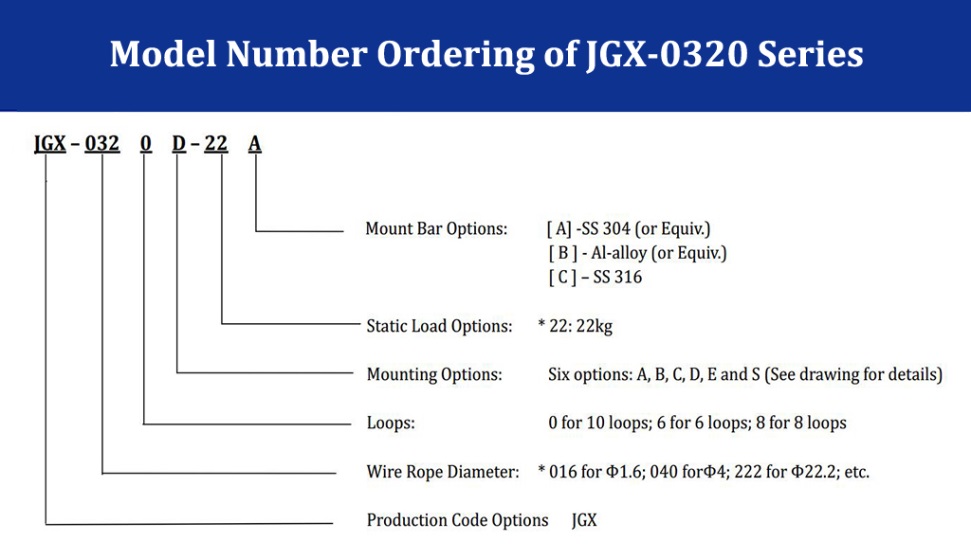

  • Model Number Code Ordering of JGX-0320 Series:

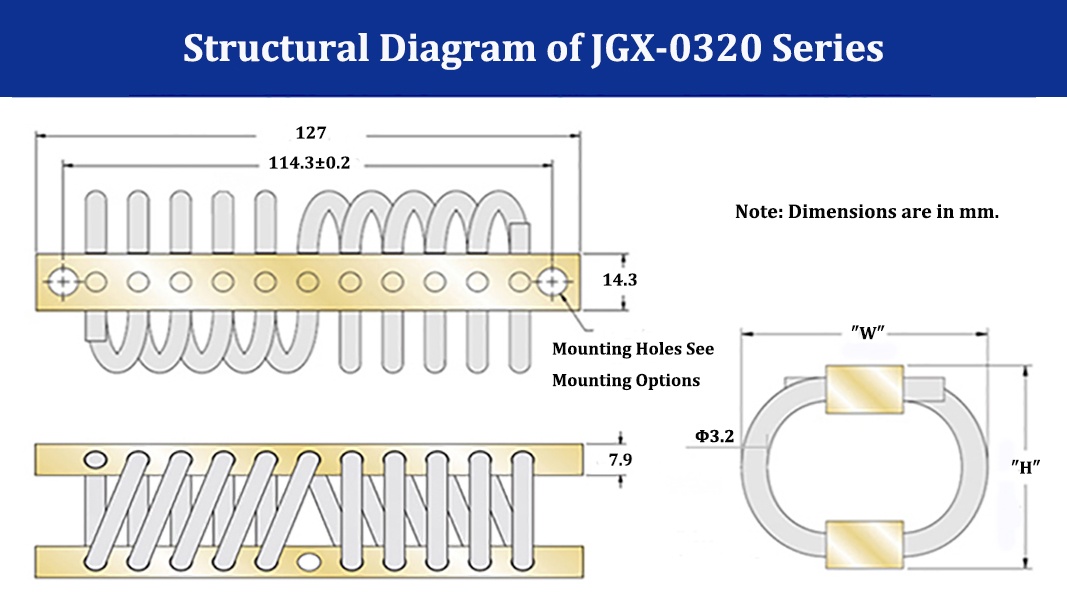

  • Structural Diagram of JGX-0320 Series:

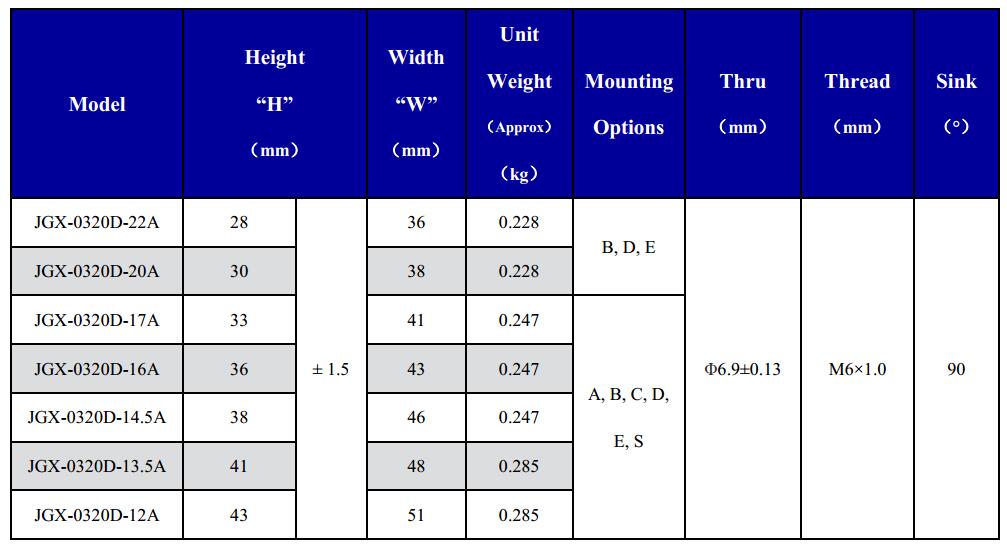

  • Dimension of JGX-0320 Series:

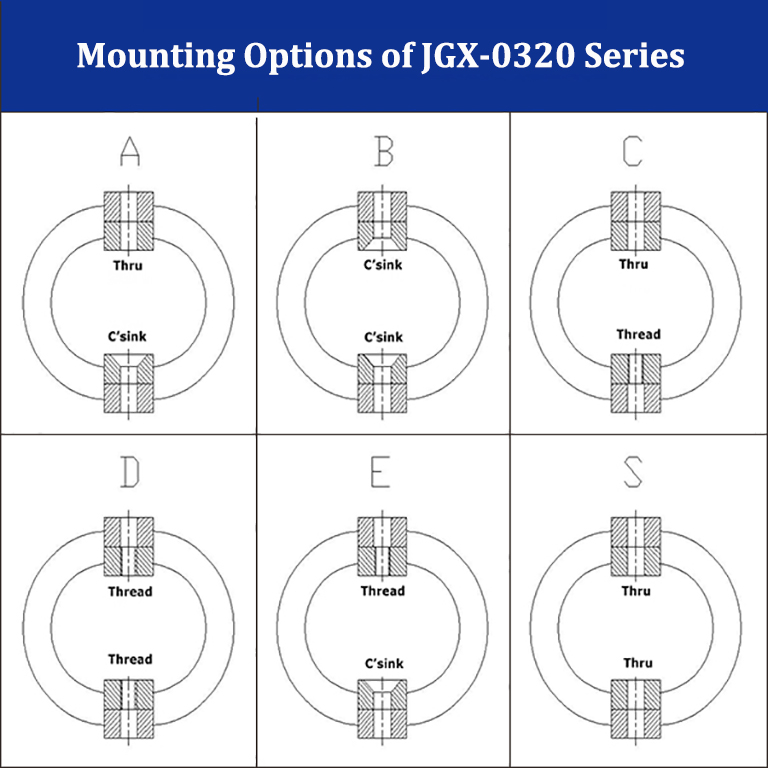

  • Mounting Options of JGX-0320 Series:

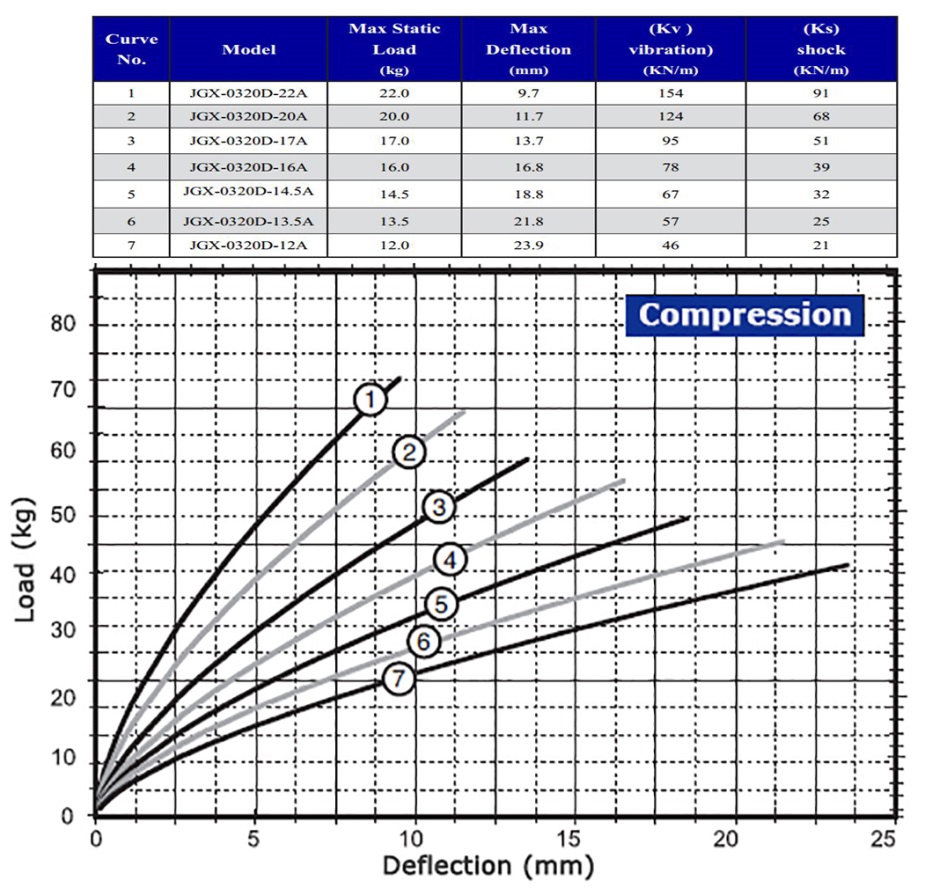

  • Compression of JGX-0320 Series:

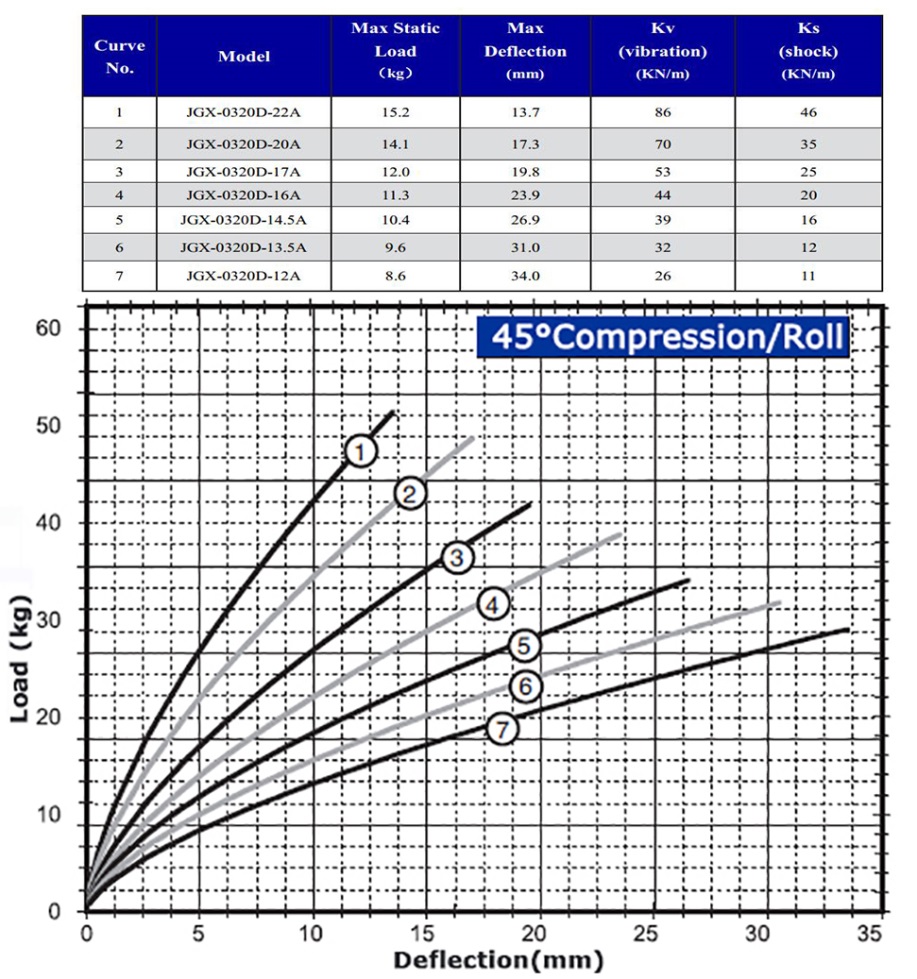

  • 45° Compression of JGX-0320 Series:

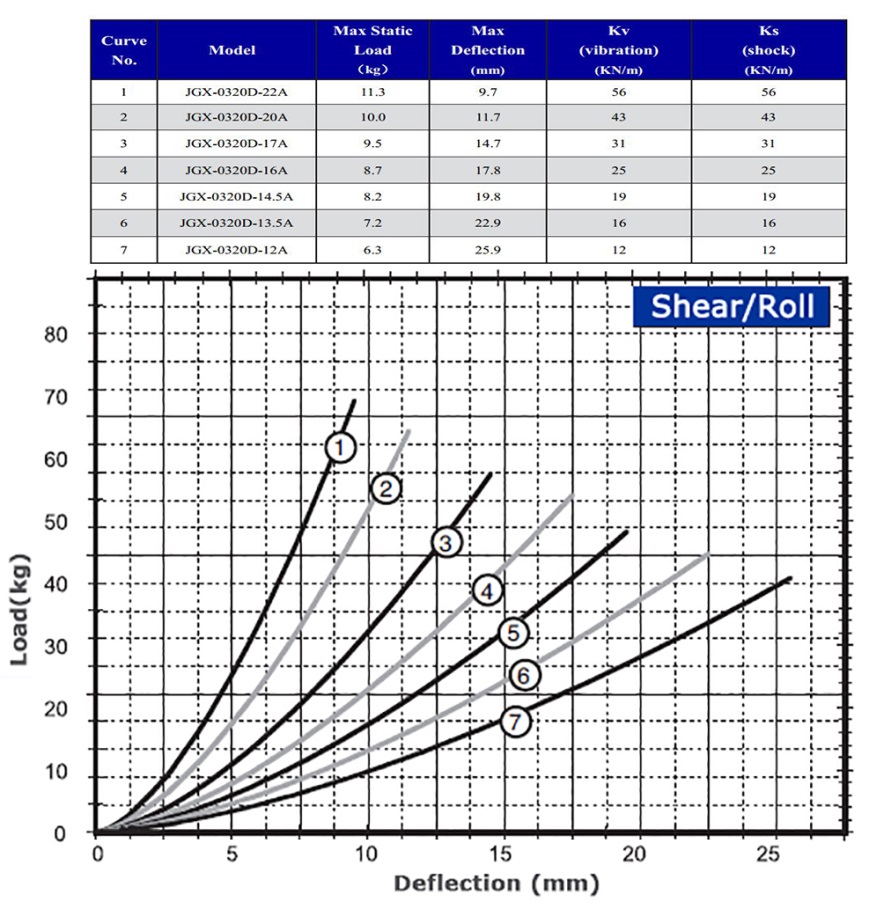

  • Shear/Roll of JGX-0320 Series:
