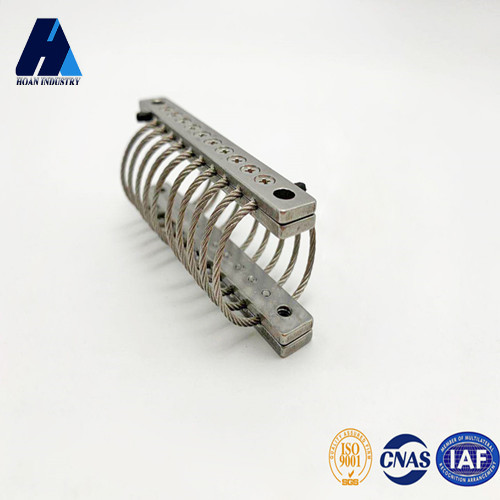

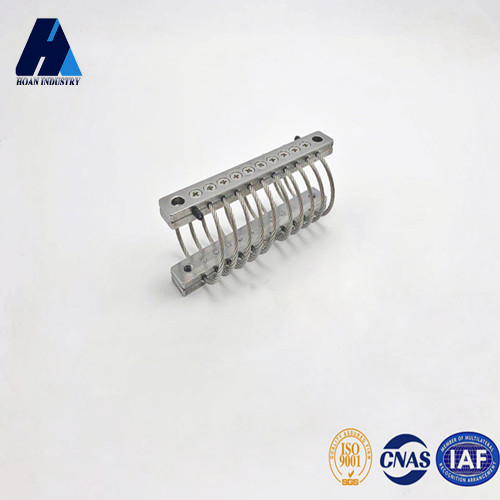

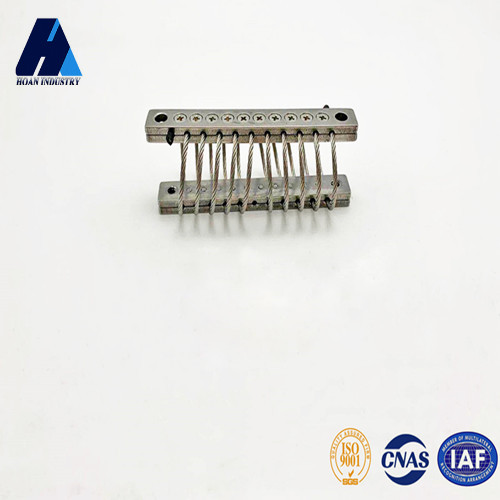

Helicopter Embedded Electric JGX-0160D-2A Wire Rope Isolator

Helicopter Embedded Electric JGX-0160D-2A Wire Rope Isolator

Material: Stainless Steel or Aluminum
Certification: ISO9001:2015
Brand Name: Hoan
Place of Origin: Shaanxi, China
Product description: Embedded Electric Helicopter JGX-0160D-2A Wire Rope Isolator
INQUIRY EMAIL

Product Description:

Product Description

Wire rope isolators are comprised of stainless steel stranded cable threaded through aluminum retaining bars that are mounted for effective shock and vibration isolation.

With their corrosion resistant, all-metal construction, Xi’an Hoan’s wire rope isolators are environmentally stable, high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.

The JGX-0160D-2A wire rope isolator is the kind type isolators from the family JGX-0160 series. The stainless steel cables and retaining bars of the JGX-0160D-2A provides amazing vibration isolation any time in use.

JGX-0160D-2A is the new designed 10 loops 1.6mm diameter model with max static load of 2kg, especially used in the precise instruments for the noise attenuation. With stainless steel material, this kind wire rope isolator have perfect performance of water-proof, anticorrosion as well as durability.

The wire rope isolators are now widely used in the field of military vehicles, armored cars, missile, launcher, highway transportation, marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras or any other needed working conditions.

Technical Parameter:

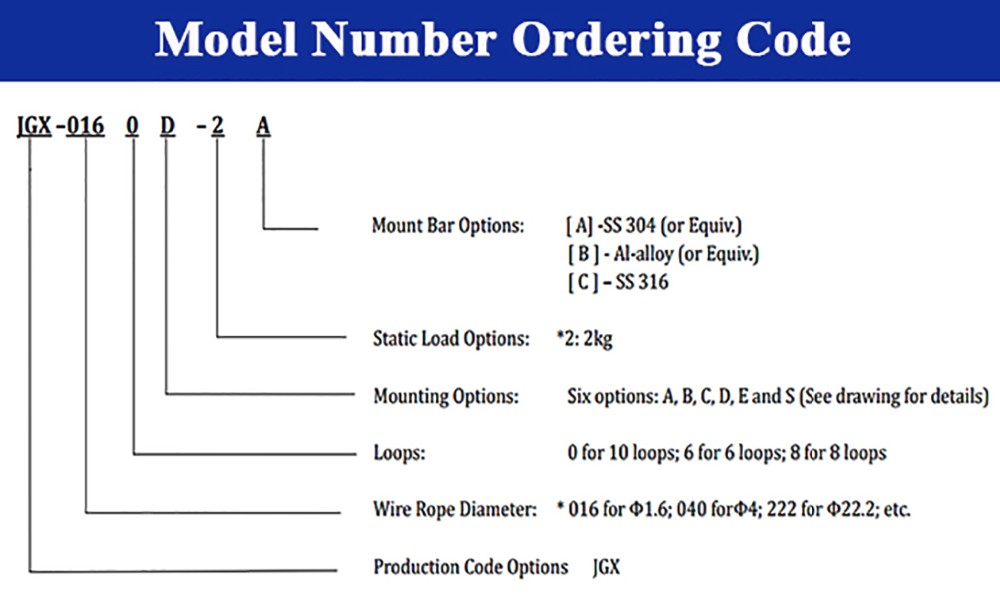

Model Number Code Ordering of JGX-0160D-2A:

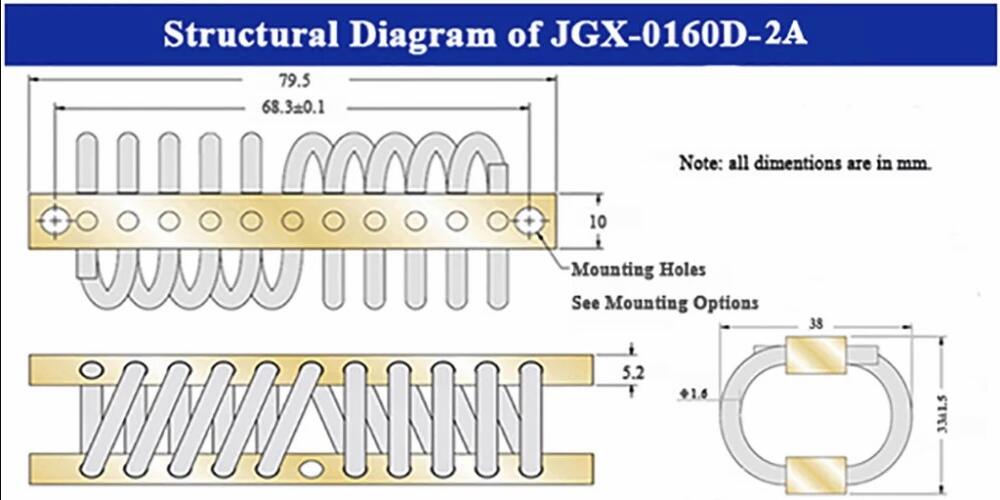

Structural Diagram of JGX-0160D-2A:

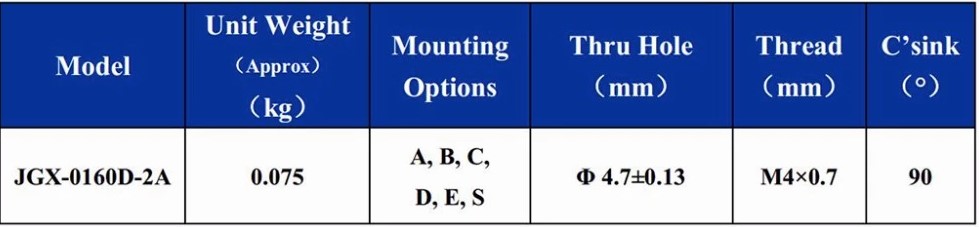

Dimension of JGX-0160D-2A:

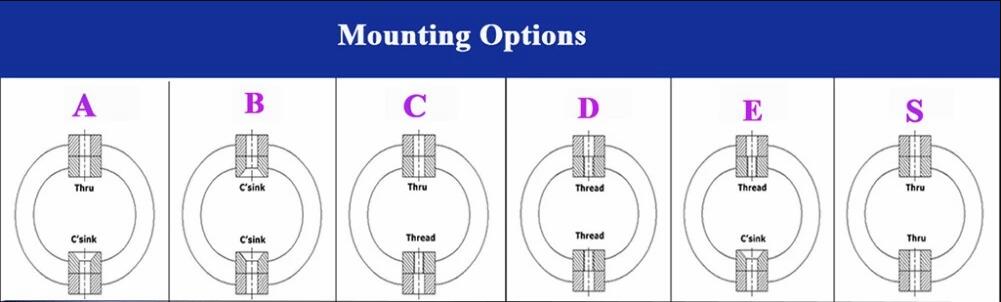

Mounting Options of JGX-0160D-2A:

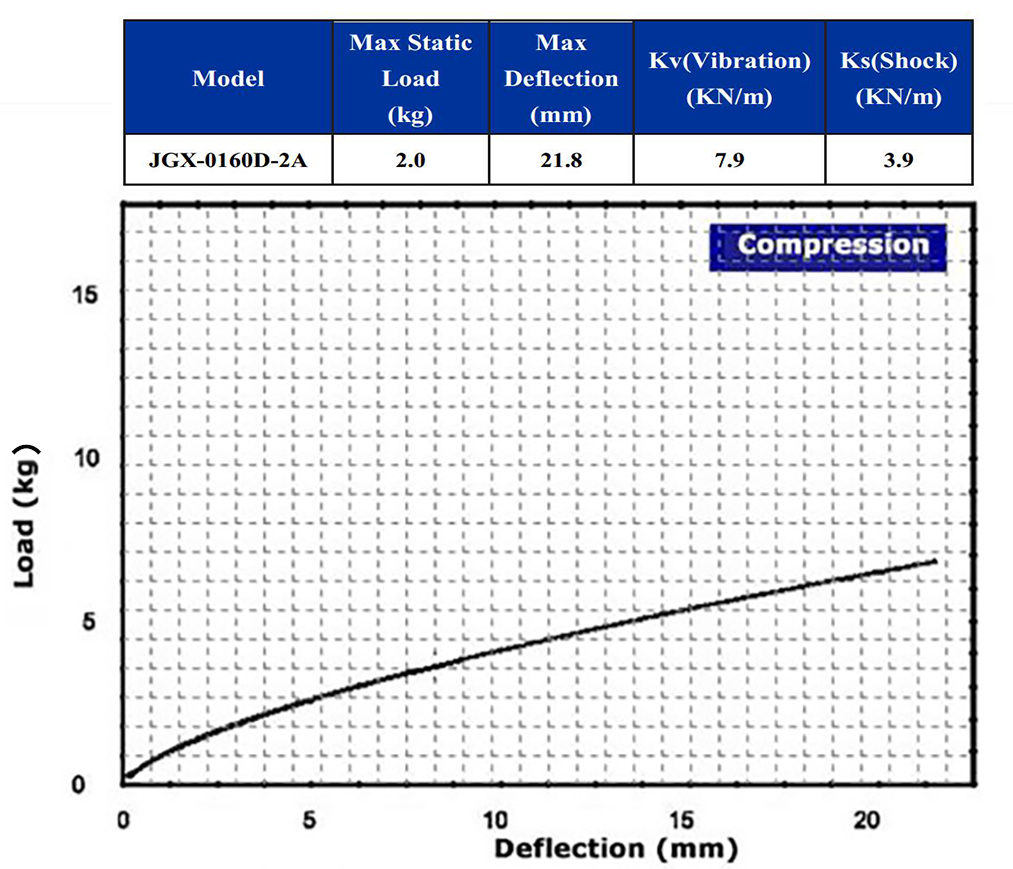

Compression of JGX-0160D-2A:

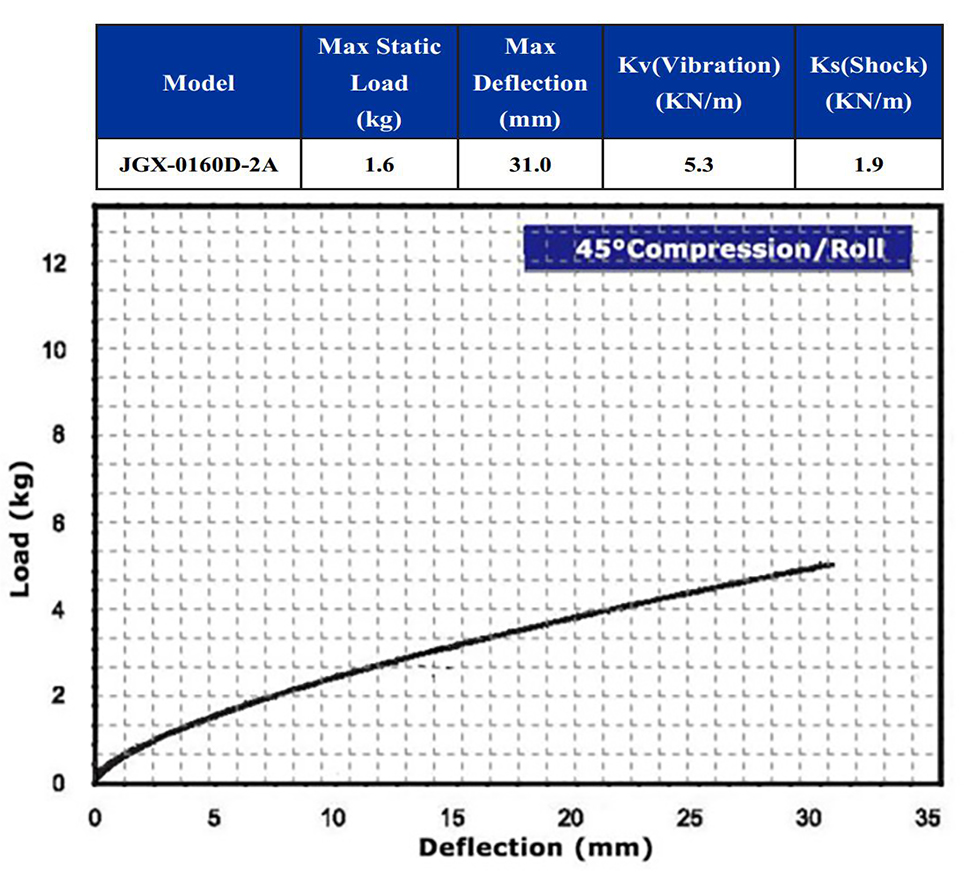

45° Compression of JGX-0160D-2A:

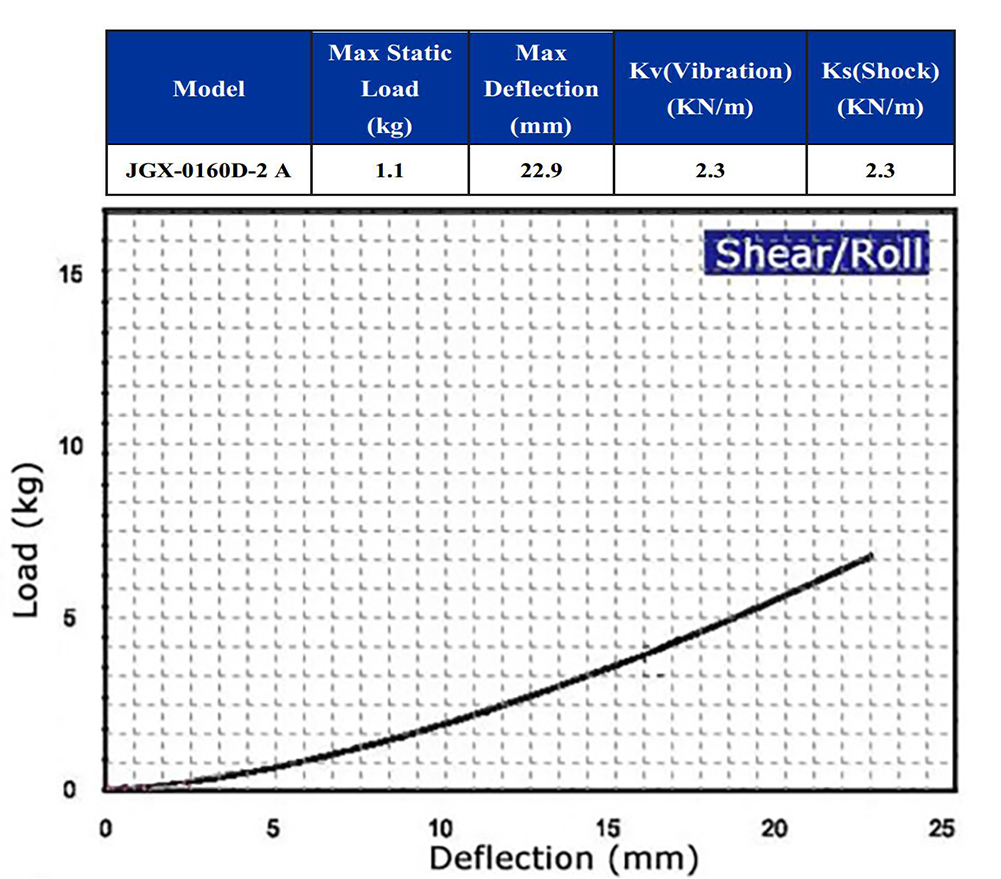

Shear/Roll of JGX-0160D-2A:
