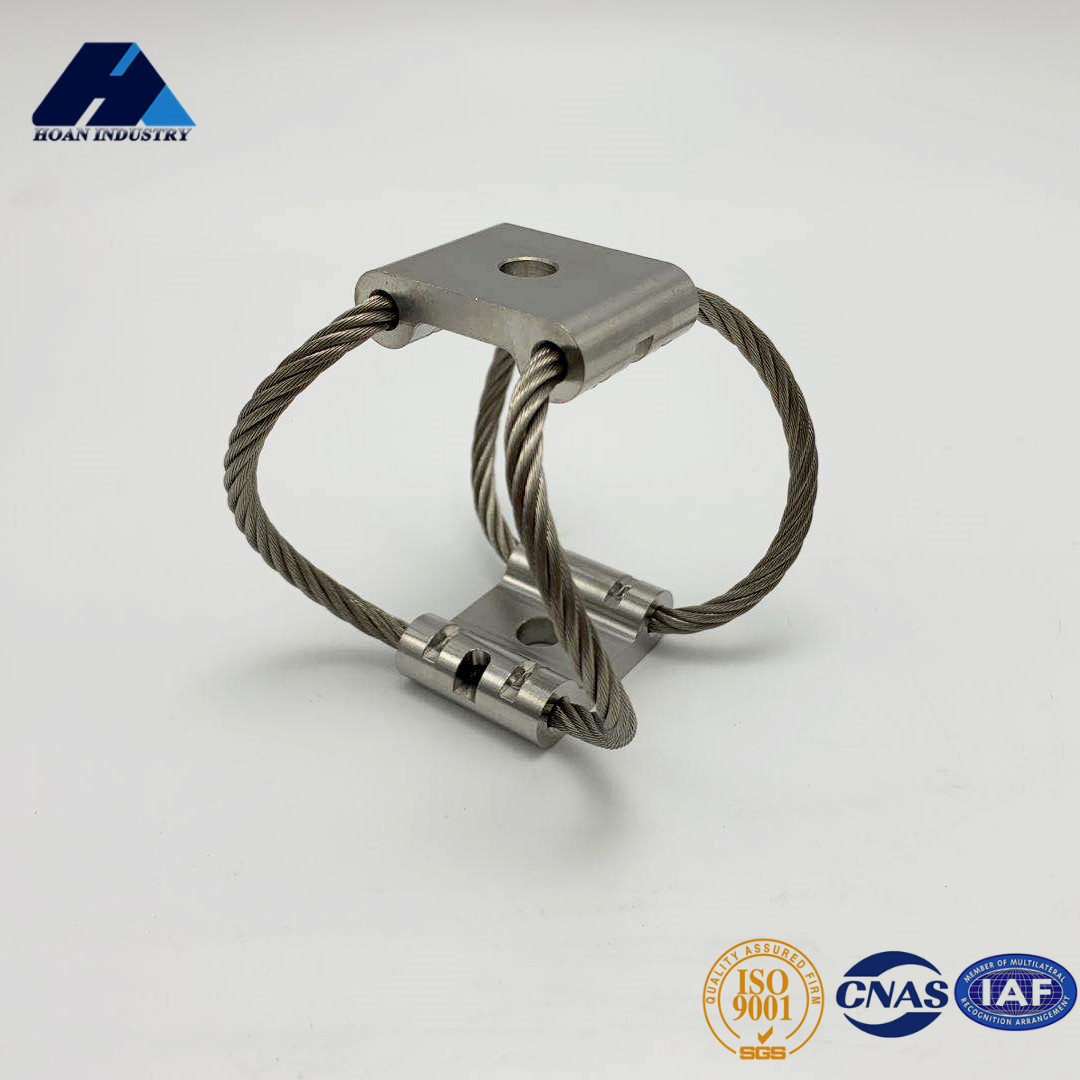

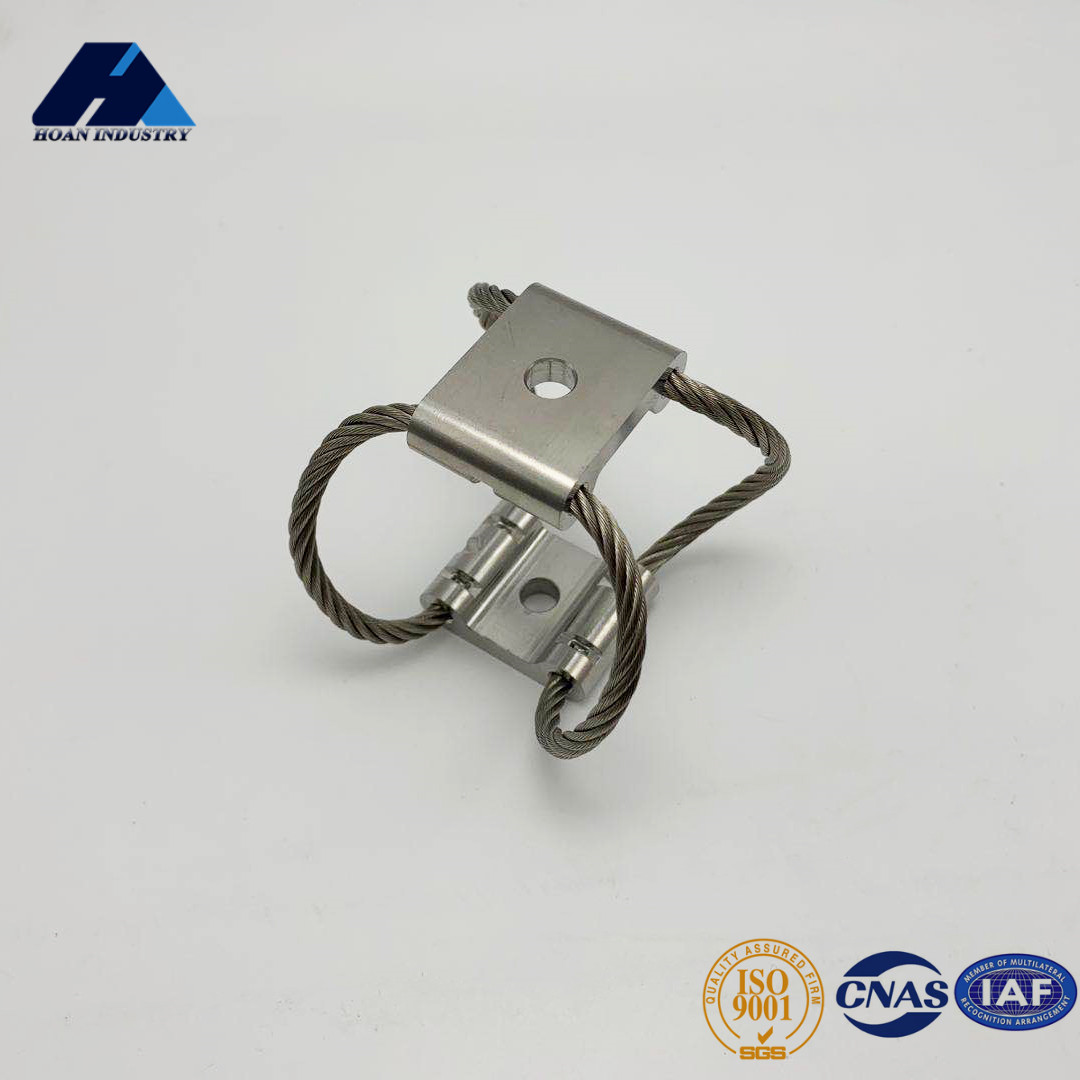

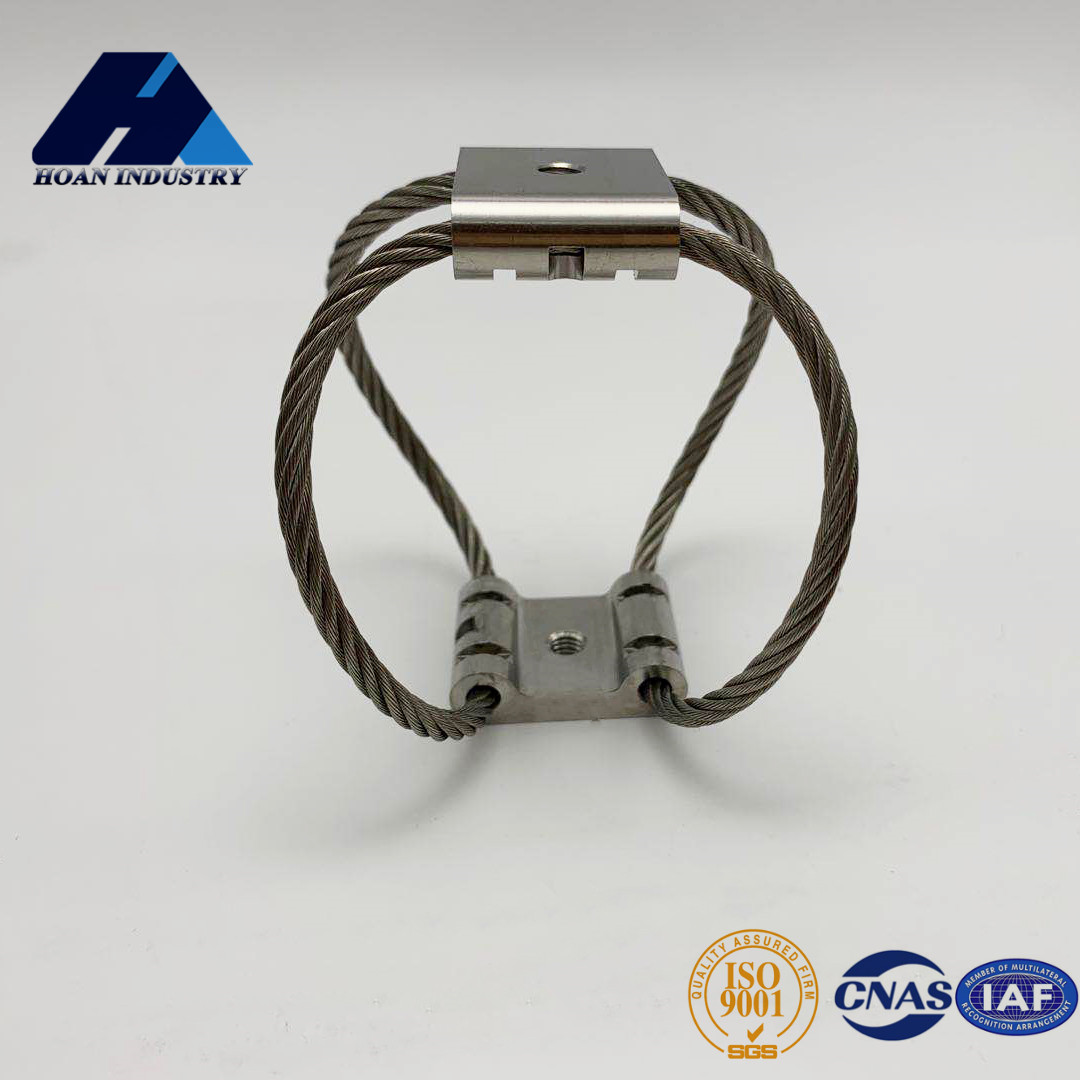

Drone UAV Camera Gimbal GR5 Series Camera Vibration Isolator

Drone UAV Camera Gimbal GR5 Series Camera Vibration Isolator

Material: Stainless Steel or Aluminum
Certification: ISO9001:2015
Brand Name: Hoan
Place of Origin: Shaanxi, China
Product description: Drone UAV Camera Gimbal GR5 Series Camera Vibration Isolator
INQUIRY EMAIL

Product Description:

Product Description

Xi'an Hoan's GR5 Series is the best choice for building your own Camera Gimbal!

The GR5 Series camera vibration isolators is one type camera accessories , which is designed especially for single use or building camera gimbals to absorb tensional force against the vehicles movement with the camera.

The GR5 series camera vibration isolators are made by the 4.0mm diameter wire rope winded in the two mounting bars, which has the max static load from 16N (1.63kg) to 80N (8.16kg). With stainless steel material, the GR5 series isolators have perfect performance of water-proof, anticorrosion as well as durability.

The GR5 Series camera vibration isolators can smooth out the small rhythmic vibrations of a traveling shot as well as dampening those sudden, unexpected jolts that a stone or a pothole can produce.

Nowadays, the GR series isolators are used widely in the field of photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronicdevices, cameras, etc.

Technical Parameter:

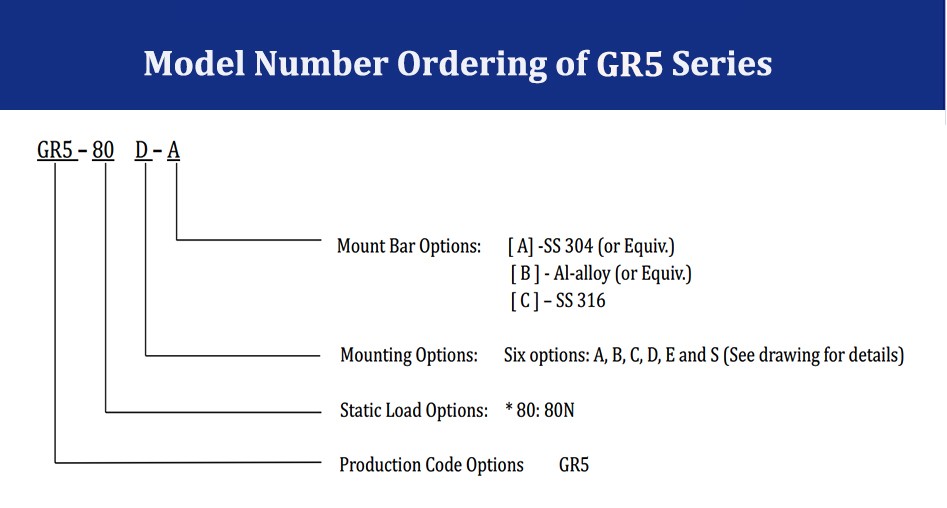

Model Number Code Ordering of GR5 Series:

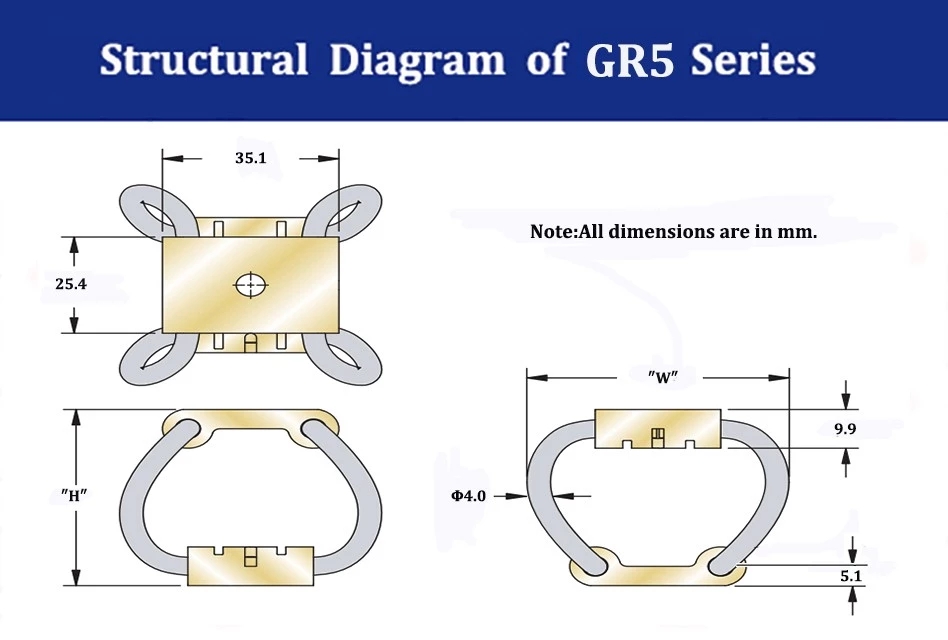

Structural Diagram of GR5 Series:

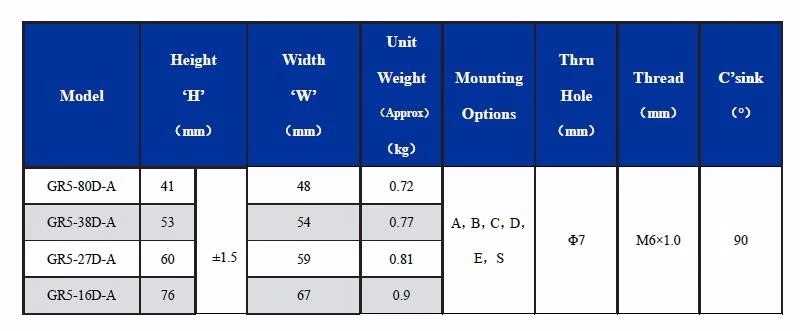

Dimension of GR5 Series:

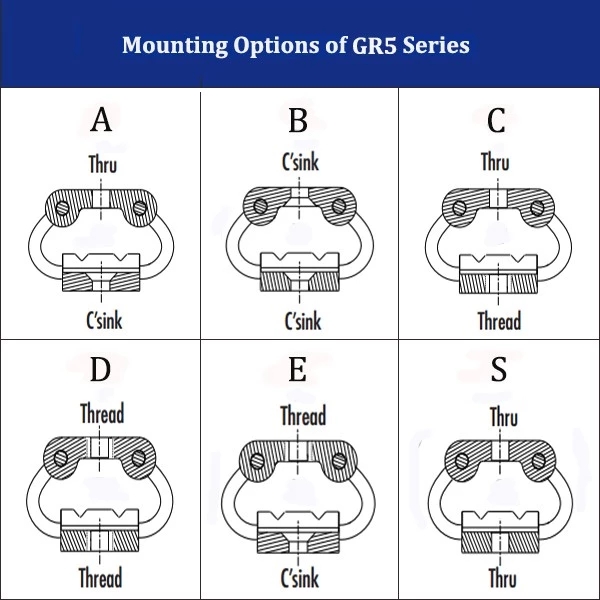

Mounting Options of GR5 Series:

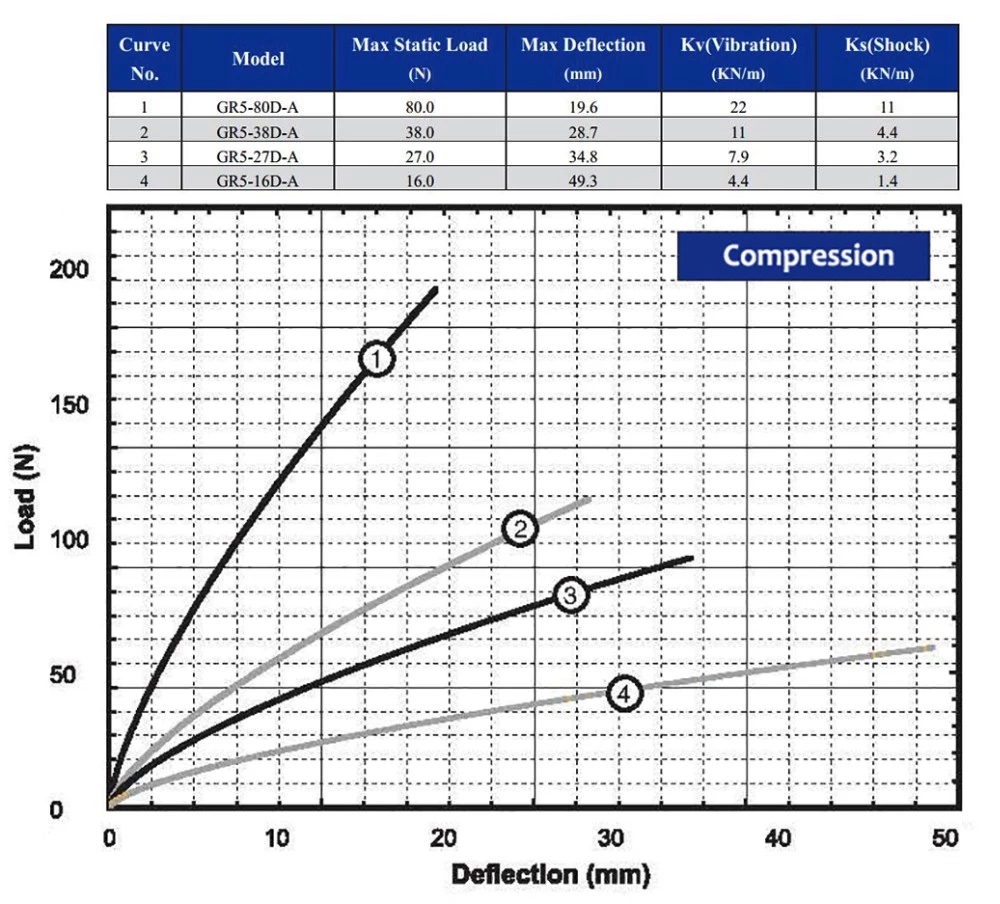

Compression of GR5 Series:

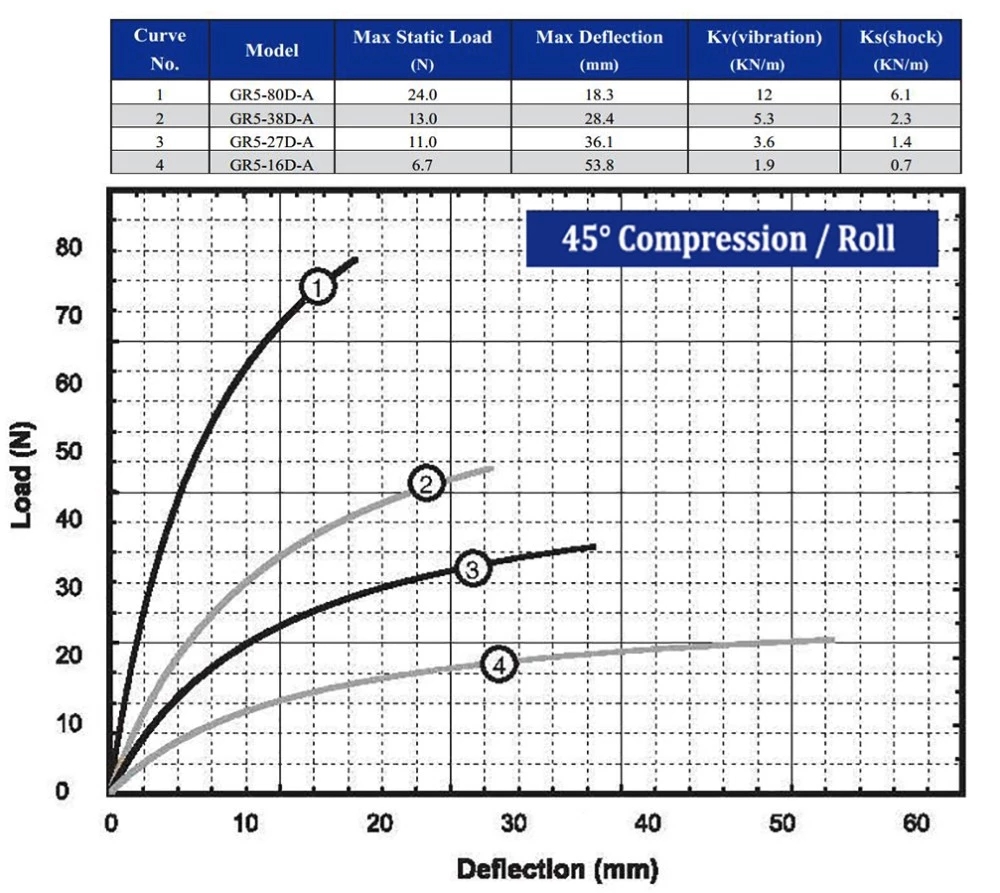

45° Compression of GR5 Series:

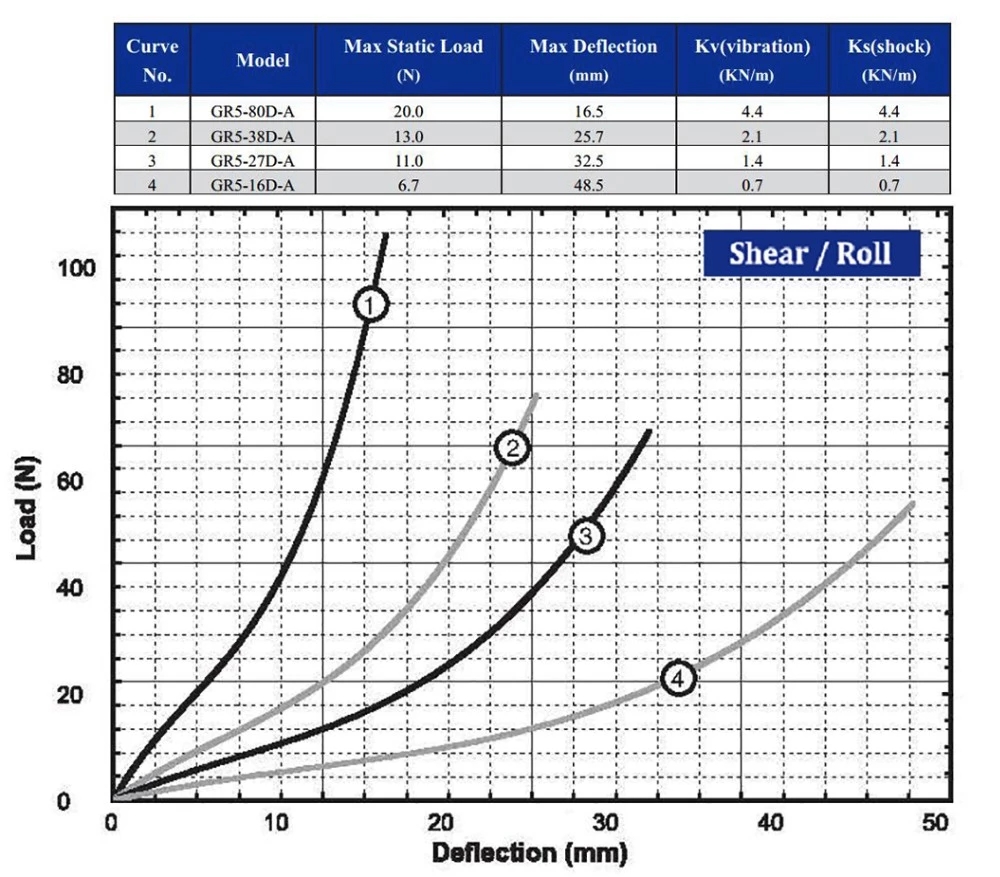

Shear/Roll of GR5 Series:
